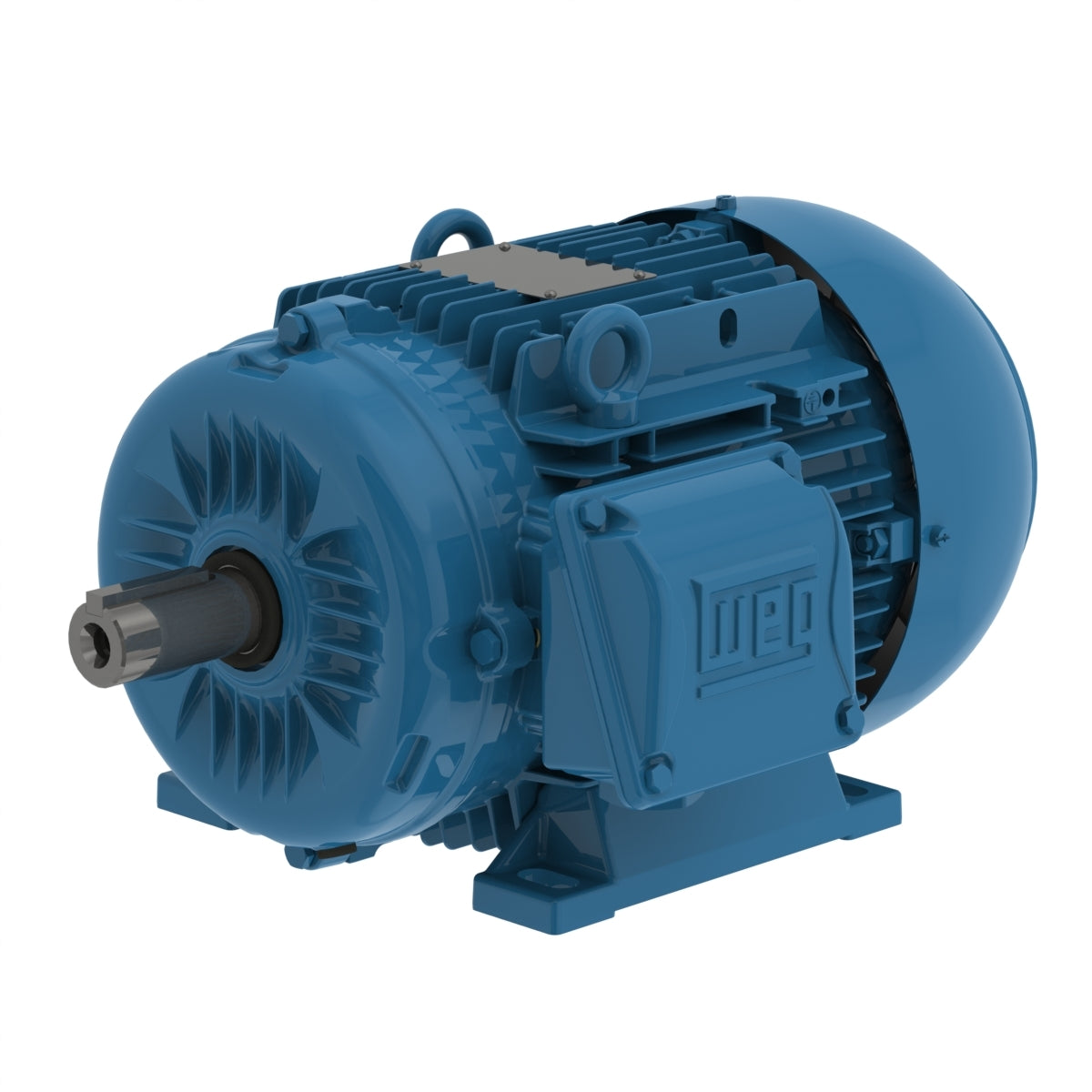

Weg Electric 00312ET3YAL132M-W22, 4 Hp, 1200 Rpm, 132M FR, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, Multimounting.

00312ET3YAL132M-W22, 4 Hp, 1200 Rpm, 132M FR, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, Multimounting.

Engineering Data

Aluminum frame and removable feet being able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 4 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 132M
Output 4 HP (3 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 460 V
Rated current 6.01 A
L. R. Amperes 44.5 A
LRC 7.4
No load current 3.50 A
Rated torque 17.9 ft.lb
Locked rotor torque 220 %
Breakdown torque 310 %
Locked rotor time 122s (cold) 68s (hot)
Moment of inertia (J) 1.07 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
