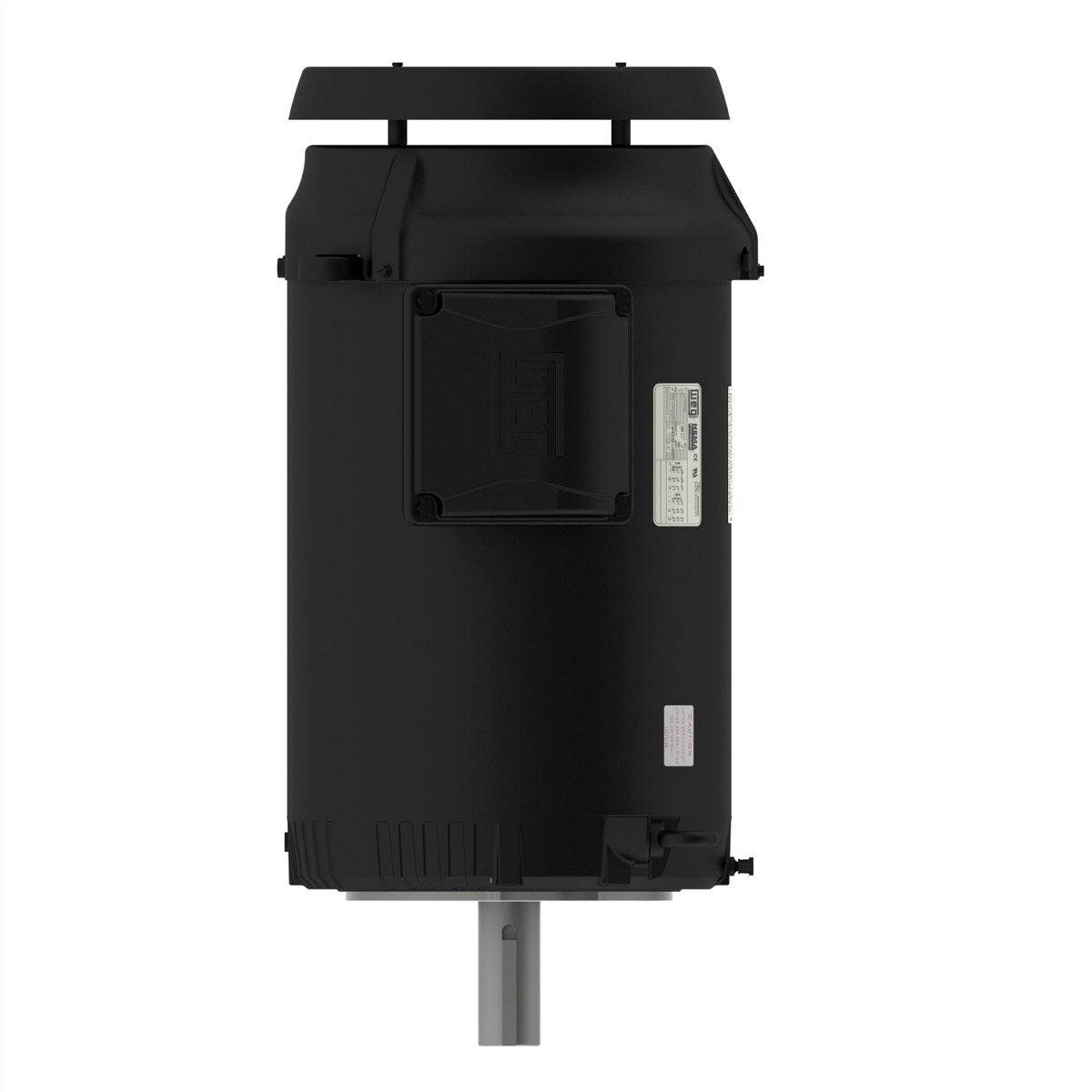

Weg Electric 00312OT3E213JMV-S, 3 Hp, 213/5JM Frame, 1200 RPM, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel JM NEMA Premium Efficiency.

00312OT3E213JMV-S, 3 Hp, 213/5JM Frame, 1200 RPM, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel JM NEMA Premium Efficiency.

Engineering Data

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 6
Synchronous speed 1200 rpm
Output rating 3 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 213/5JM
Output 3 HP (2.2 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 8.32/4.16 A
L. R. Amperes 49.1/24.5 A
LRC 5.9x(Code H)
No load current 4.58/2.29 A
Rated torque 13.4 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 70s (cold) 39s (hot)
Moment of inertia (J) 0.8104 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
