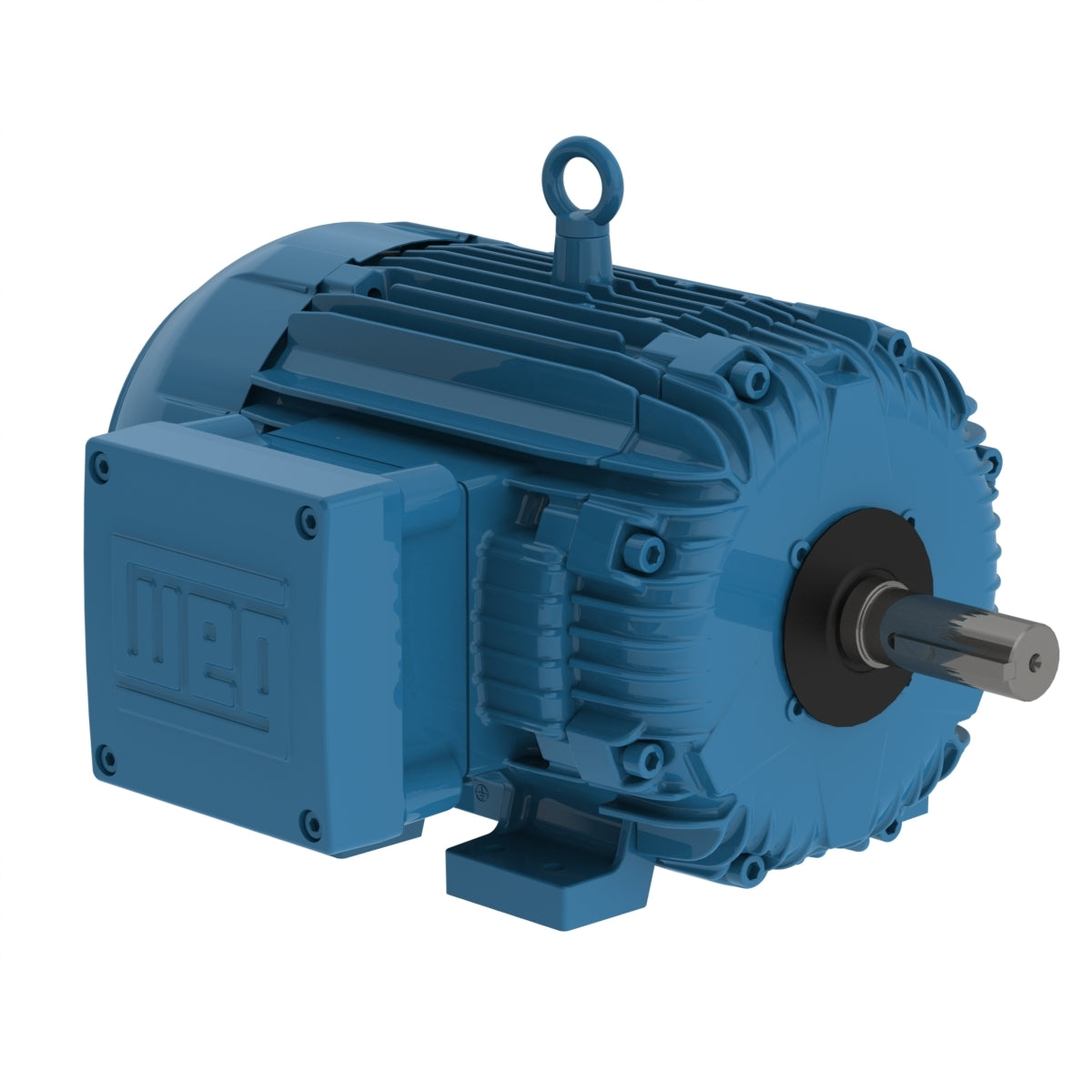

Weg Electric 00318AT3ECT182TF1-W2, 3 Hp, 1800 Rpm, 182T FR, 208-230/460//380 Vac, TEAO, 3 PH, Foot-mounted, Cooling Tower.

00318AT3ECT182TF1-W2, 3 Hp, 1800 Rpm, 182T FR, 208-230/460//380 Vac, TEAO, 3 PH, Foot-mounted, Cooling Tower.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TEAO

Frame 182T
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 208-230/460 V
Rated current 8.65-7.82/3.91 A
L. R. Amperes 70.1-63.3/31.7 A
LRC 8.1x(Code K)
No load current 3.45-4.00/2.00 A
Rated torque 8.95 ft.lb
Locked rotor torque 229 %
Breakdown torque 340 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 0.3401 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
