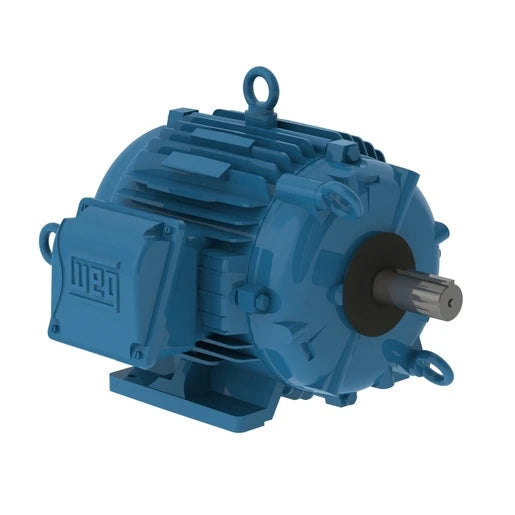

Weg Electric 00318AT3HCT182TF1-W2, 3 Hp, 1800 Rpm, 182T Frame, 575 Vac, TEAO, 3 PH, Foot-Mounted, W22 Cooling Tower NEMA Premium Efficiency, 14413408

Weg Electric 00318AT3HCT182TF1-W2, 3 Hp, 1800 Rpm, 182T Frame, 575 Vac, TEAO, 3 PH, Foot-Mounted, W22 Cooling Tower NEMA Premium Efficiency, 14413408

$715.56
$715.56
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00318AT3HCT182TF1-W2, 3 Hp, 1800 Rpm, 182T Frame, 575 Vac, TEAO, 3 PH, Foot-Mounted, W22 Cooling Tower NEMA Premium Efficiency,  14413408

SPECIFICATIONS

Manufacturer Part Number 00318AT3HCT182TF1-W2
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 3HP 4P 182T WFF2
Type Cooling Tower Duty
Horsepower 3 hp
Kilowatts 2.2 kW
Speed 1,800 RPM
Number of Poles 4
Phase 3
Frequency 60 Hz
NEMA Frame 182T
AC Voltage 575 VAC
Enclosure Totally Enclosed Air Over
Mounting Foot Mount
Current Rating 3.21 A
Service Factor 1.15
Inverter Duty No
Motor Type Foot Mount
Composition Cast Iron
Shaft Diameter 1.13 "
Overload Protection None
Length 12.65 "
Approvals cCSAus, cULus
Net Weight 94.519 lbs
Gross Weight 94.519 lbs
