Industrial Motors

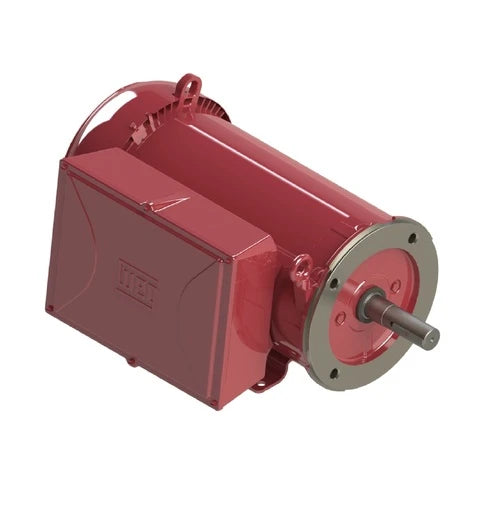

Weg Electric 00318ES1DFD182TC-S, 3 HP, 182/4TC FR, 1Ph, 230 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, ROLLED STEEL, 18191420

Weg Electric 00318ES1DFD182TC-S, 3 HP, 182/4TC FR, 1Ph, 230 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, ROLLED STEEL, 18191420

$936.28
$936.28
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00318ES1DFD182TC-S, 3 HP, 182/4TC FR, 1Ph, 230 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, ROLLED STEEL, 18191420

SPECIFICATIONS

Frame 182/4TC
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 230 V
Rated current 11.9 A
L. R. Amperes 118 A
LRC 9.9x(Code L)
No load current 7.40 A
Rated torque 8.90 ft.lb
Locked rotor torque 400 %
Breakdown torque 360 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.3709 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Starting Method Direct On Line
Duty Cycle Cont.(S1)
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 103 lb
