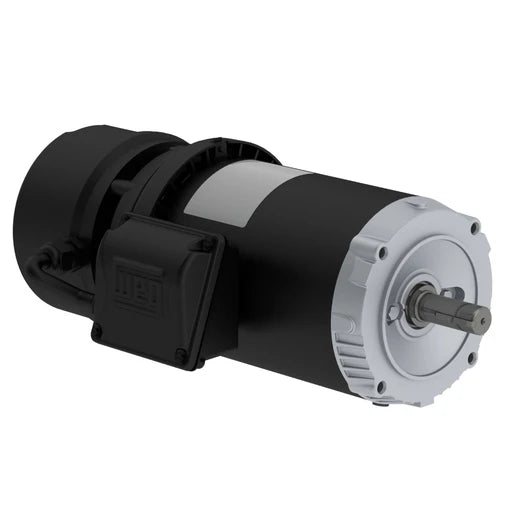

Weg Electric, 00318ET3EBMR182TC-S, 3 HP, 182/4TC FR, 3Ph, 230/460//190-220/380-415 V, 60 Hz, 1800 RPM, TEFC, Footless, ROLLED STEEL, 14593691

Weg Electric, 00318ET3EBMR182TC-S, 3 HP, 182/4TC FR, 3Ph, 230/460//190-220/380-415 V, 60 Hz, 1800 RPM, TEFC, Footless, ROLLED STEEL, 14593691

$1,948.21
$1,948.21
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric, 00318ET3EBMR182TC-S, 3 HP, 182/4TC FR, 3Ph, 230/460//190-220/380-415 V, 60 Hz, 1800 RPM, TEFC, Footless, ROLLED STEEL, 14593691

SPECIFICATIONS

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 3 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
