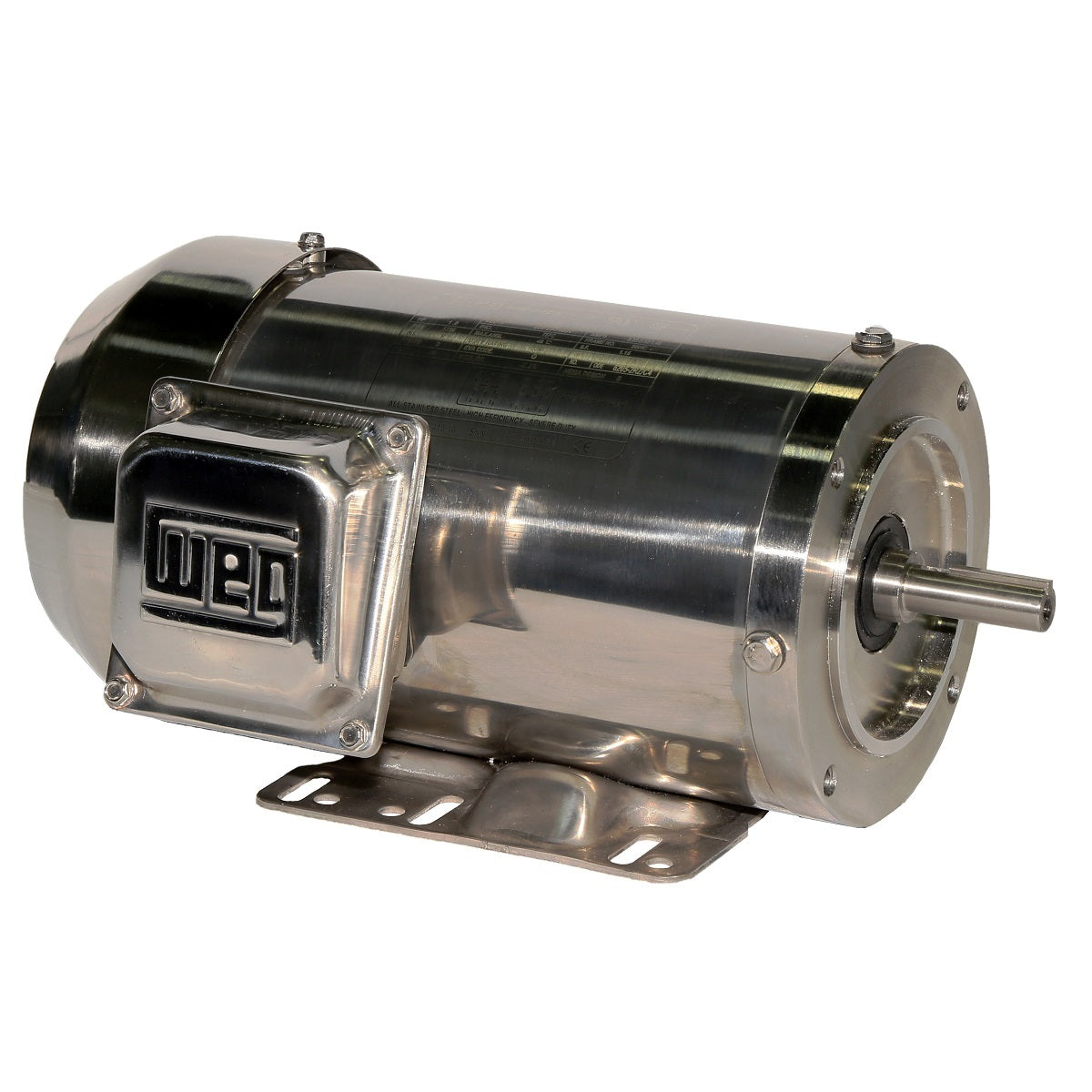

Weg Electric 00318ET3ESS182TC, 3 Hp, 1800 Rpm, 182TC FR, 230/460 Vac, TEFC, Foot-mounted, Premium Steel.

00318ET3ESS182TC, 3 Hp, 1800 Rpm, 182TC FR, 230/460 Vac, TEFC, Foot-mounted, Premium Steel.

Engineering Data

For use in food processing, pharmaceutical and other environments requiring extreme cleanliness and frequent washdowns.

Product features
Standard NEMA MG-1
Frame 182TC
Frequency 60 Hz
Number of poles 4
Degree of Protection IP56
Synchronous speed 1800 rpm
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure TEFC

Standard NEMA MG-1
Degree of Protection IP56
Mounting F-1
Output rating 3 HP
Enclosure TEFC
Frequency 60 Hz
Flange C
Frame Material Stainless steel
Mounting Foot-mounted
Efficiency NEMA Premium Efficiency
Motor Application Shark
Terminal box¹ Left position
Frame 182TC
Voltage 230/460 V
Synchronous speed 1800 rpm
Number of Poles 04
