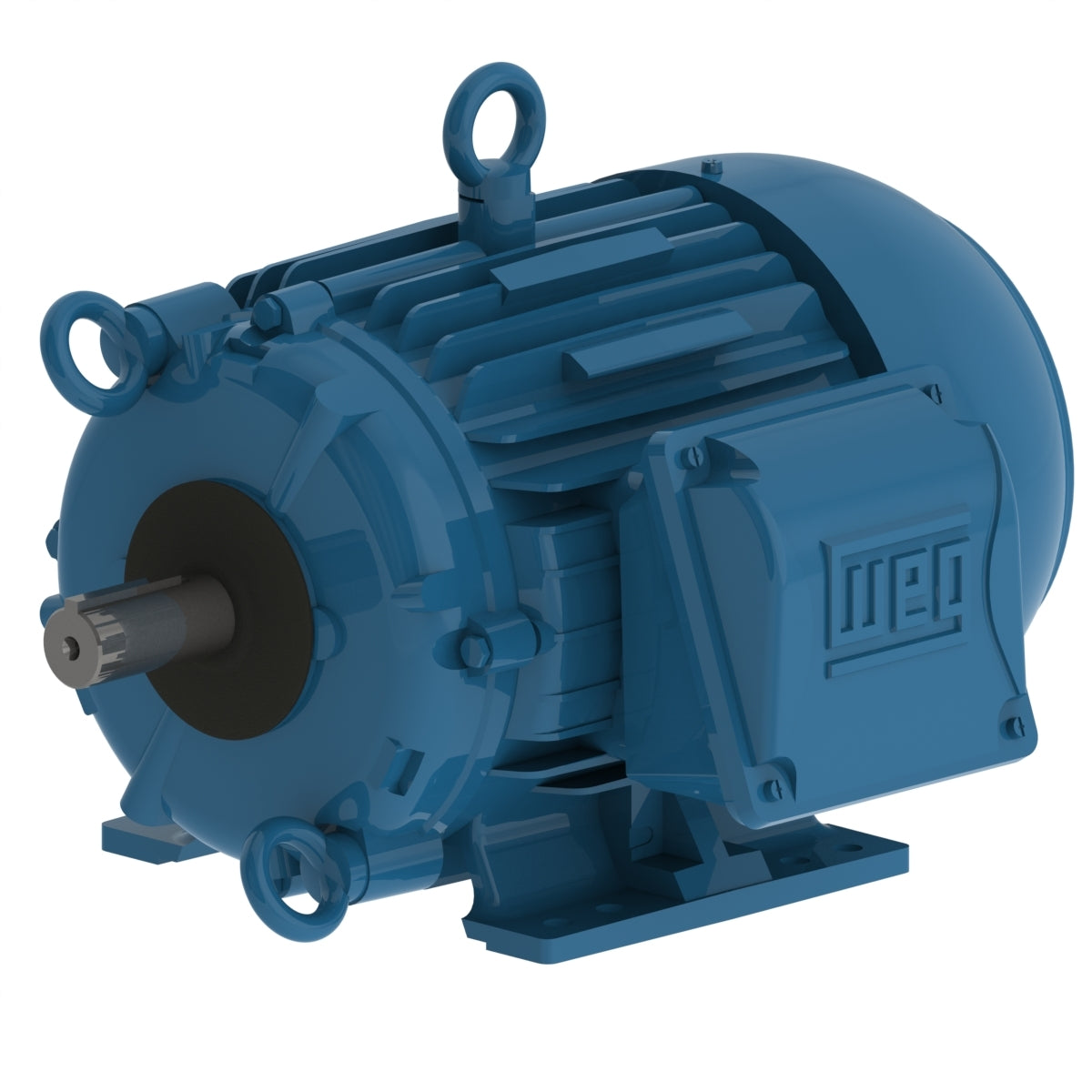

Weg Electric 00318ET3PCT182T-W22, 3 Hp, 1800 Rpm, 182T Frame, 200 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower NEMA Premium Efficiency.

00318ET3PCT182T-W22, 3 Hp, 1800 Rpm, 182T Frame, 200 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 182T
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 200 V
Rated current 8.99 A
L. R. Amperes 72.8 A
LRC 8.1x(Code K)
No load current 4.60 A
Rated torque 8.95 ft.lb
Locked rotor torque 229 %
Breakdown torque 340 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 0.3401 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
