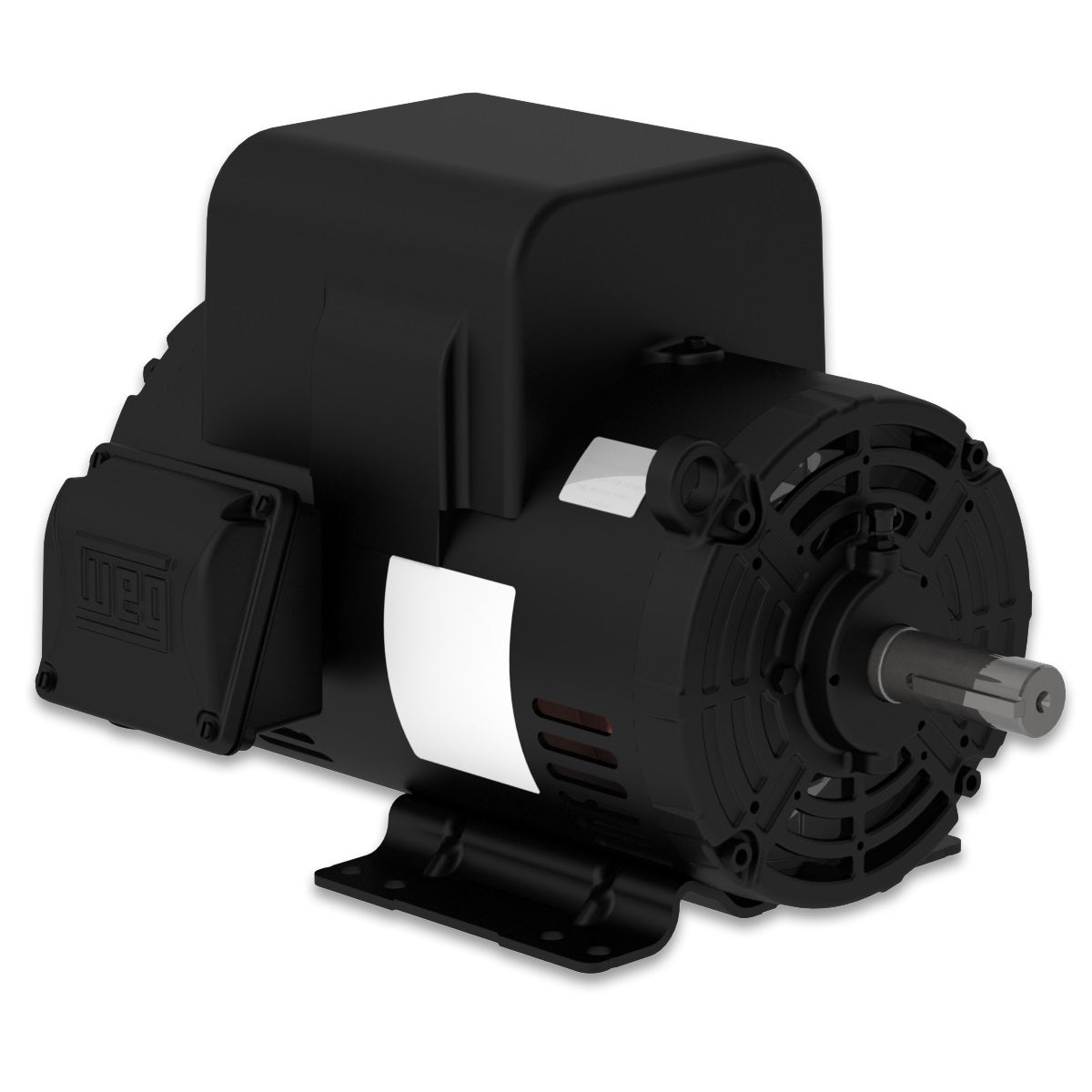

Weg Electric 00318OS1B184T-S, 3 Hp, 1800 Rpm, 182/4T Frame, 115/208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

00318OS1B184T-S, 3 Hp, 1800 Rpm, 182/4T Frame, 115/208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 182/4T
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1745 rpm
Slip 3.06 %
Rated voltage 115/208-230 V
Rated current 29.9/15.8-15.0 A
L. R. Amperes 173/91.6-87.0 A
LRC 5.8x(Code H)
No load current 16.1/6.10-8.10 A
Rated torque 9.03 ft.lb
Locked rotor torque 250 %
Breakdown torque 210 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.2776 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
