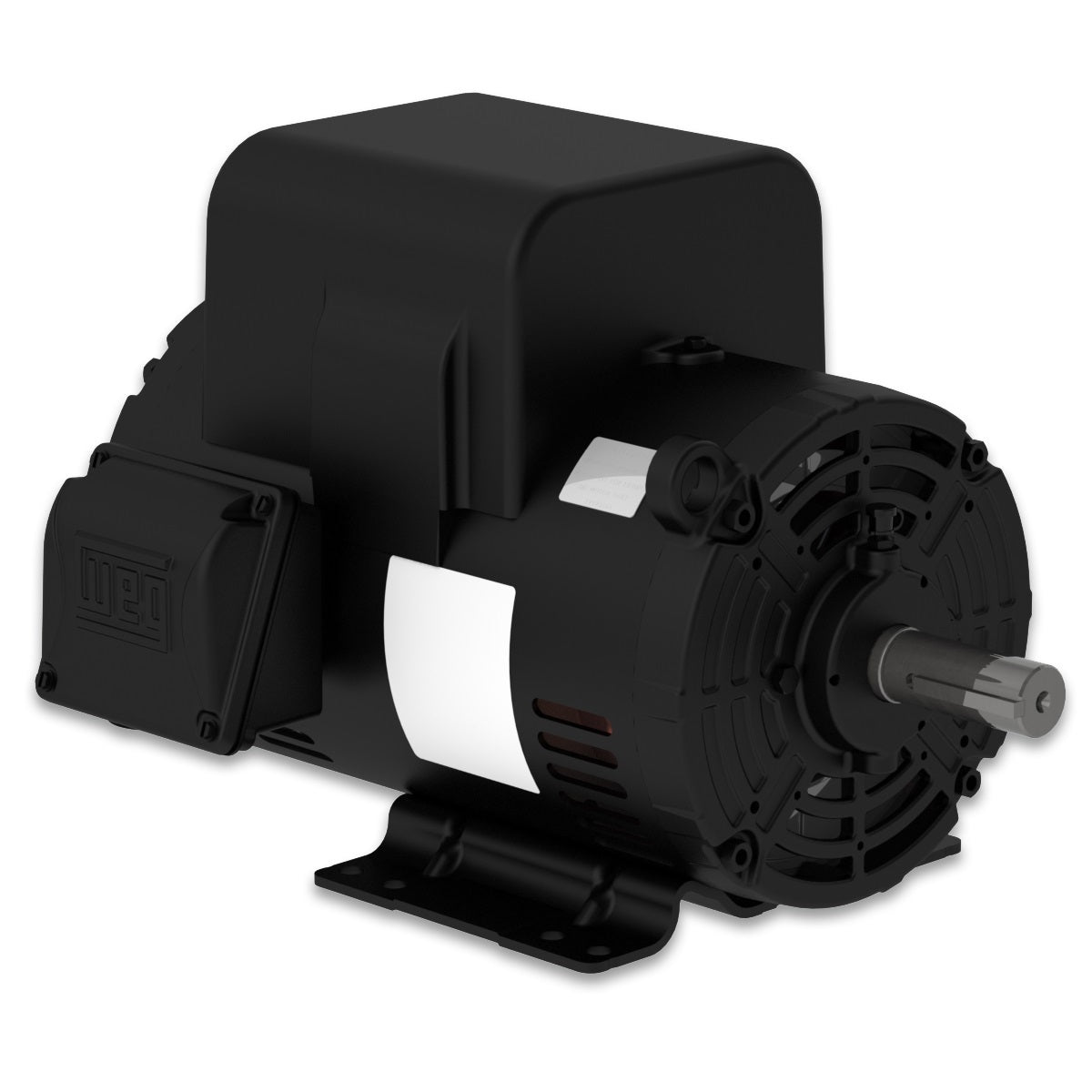

Weg Electric 00318OS1C184T-S, 3 Hp, 182/4T Frame, 1800 RPM, 208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

00318OS1C184T-S, 3 Hp, 182/4T Frame, 1800 RPM, 208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 182/4T
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 208-230 V
Rated current 13.7-12.8 A
L. R. Amperes 95.9-89.6 A
LRC 7.0x(Code H)
No load current 4.91-5.70 A
Rated torque 8.93 ft.lb
Locked rotor torque 275 %
Breakdown torque 245 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.2781 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
