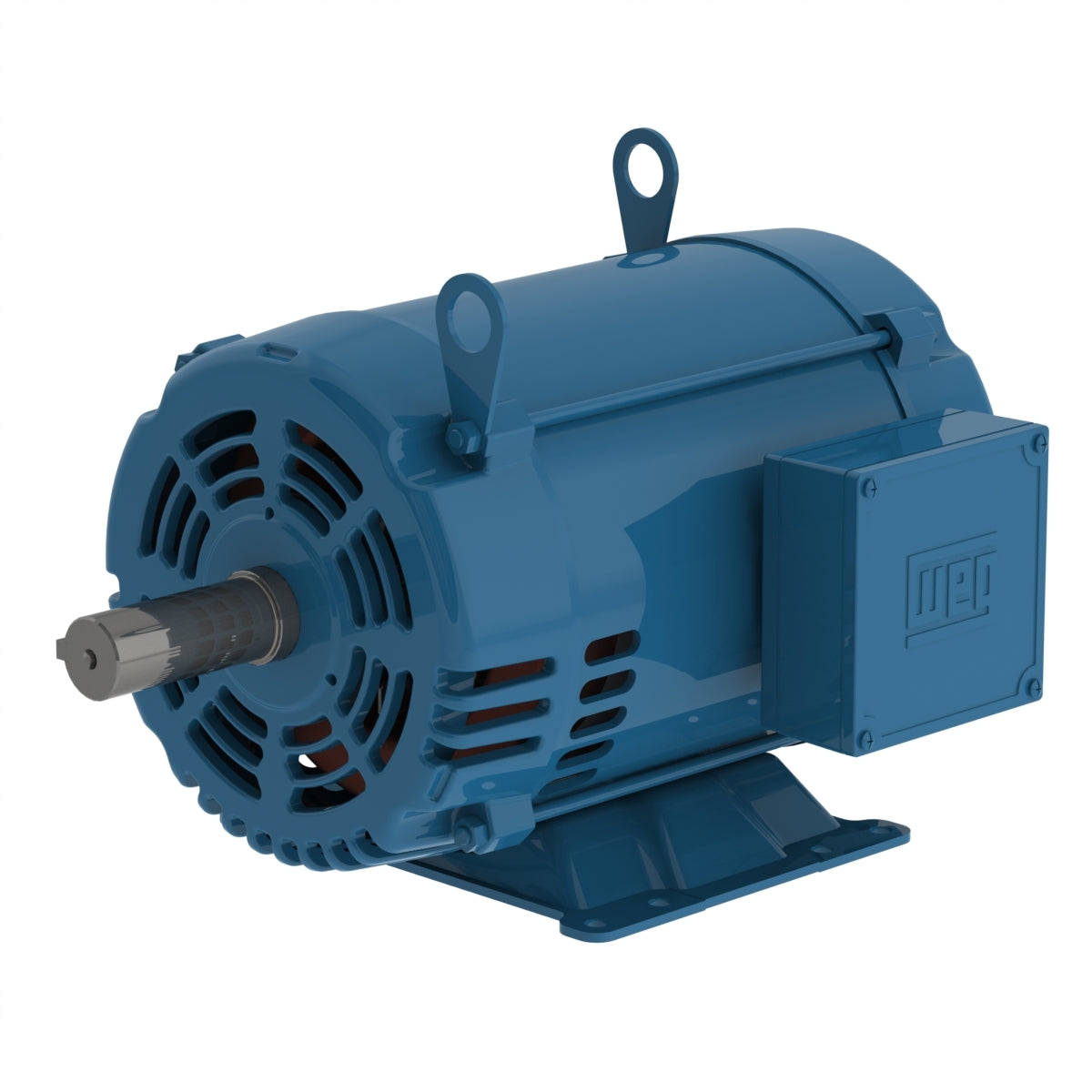

Weg Electric 00318OT3E182TF2, 3 Hp, 1800 Rpm, 182T FR, 230/460 Vac, ODP, 3 PH, Foot-mounted, General NEMA Premium Efficiency.

00318OT3E182TF2, 3 Hp, 1800 Rpm, 182T FR, 230/460 Vac, ODP, 3 PH, Foot-mounted, General NEMA Premium Efficiency.

Engineering Data

Motor with steel plate frame, for general use, developed to meet different applications with maximum performance and economy.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 4
Degree of Protection IP21
Synchronous speed 1800 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC01 - ODP

Frame 182T
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 8.12/4.06 A
L. R. Amperes 65.8/32.9 A
LRC 8.1x(Code K)
No load current 4.74/2.37 A
Rated torque 8.95 ft.lb
Locked rotor torque 240 %
Breakdown torque 300 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.2541 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
