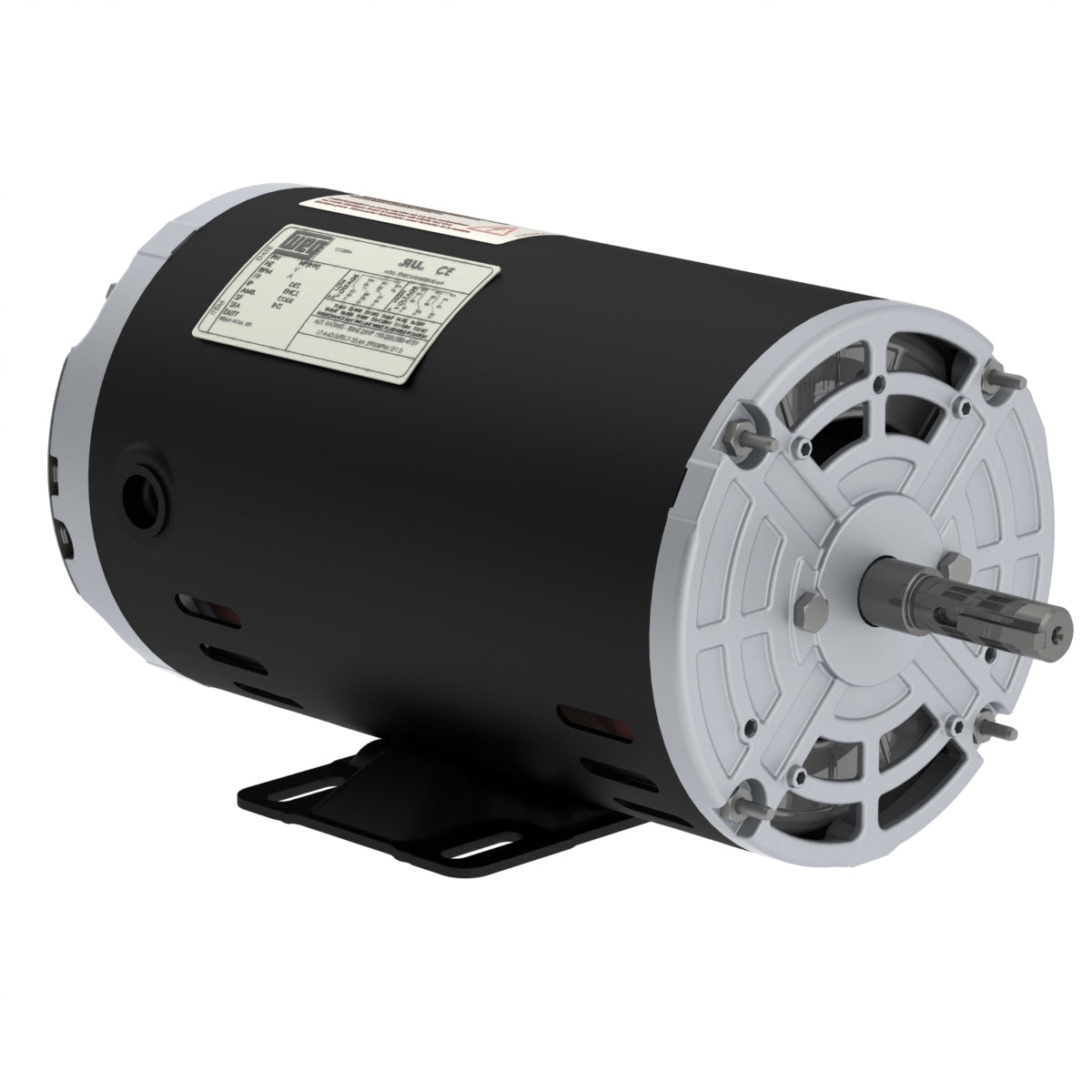

Weg Electric 00318OT3E56Z-S, 3 Hp, 1800 Rpm, 56HZ FR, 208-230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

00318OT3E56Z-S, 3 Hp, 1800 Rpm, 56HZ FR, 208-230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for the severest applications.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56HZ
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1735 rpm
Slip 3.61 %
Rated voltage 208-230/460 V
Rated current 8.79-7.94/3.97 A
L. R. Amperes 66.8-60.3/30.2 A
LRC 7.6x(Code K)
No load current 3.62-4.20/2.10 A
Rated torque 9.08 ft.lb
Locked rotor torque 270 %
Breakdown torque 300 %
Locked rotor time 21s (cold) 12s (hot)
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
