Industrial Motors

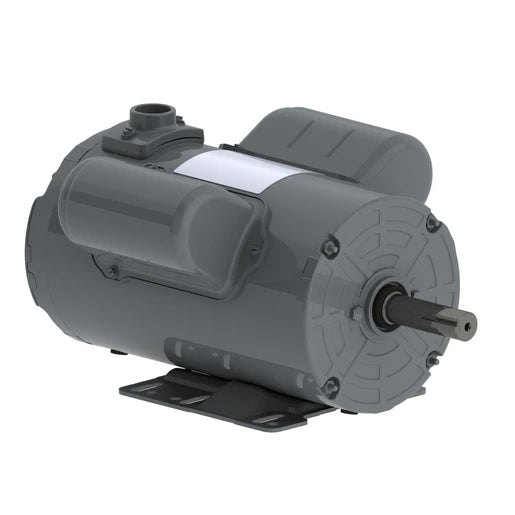

Weg Electric 00336AP1DGD145TZ-S, MOTOR, 1.5-3.0HP, 3600 rpm, 230 V, TEAO, Foot-Mounted, Rolled Steel, 13972797

Weg Electric 00336AP1DGD145TZ-S, MOTOR, 1.5-3.0HP, 3600 rpm, 230 V, TEAO, Foot-Mounted, Rolled Steel, 13972797

$809.90
$809.90
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00336AP1DGD145TZ-S, MOTOR, 1.5-3.0HP, 3600 rpm, 230 V, TEAO, Foot-Mounted, Rolled Steel, 13972797

Specifications

Manufacturer Part Number 00336AP1DGD145TZ-S
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 1.5-3.0HP 2P 143/5TZ WCF2 GRAIN DR
Type General Purpose
Horsepower 3 hp
Kilowatts 2.2 kW
Speed 3,600 RPM
Number of Poles 2
Phase 1
Frequency 60 Hz
NEMA Frame 143/5TZ
AC Voltage 230 VAC
Nominal Voltage 240 VAC
Enclosure Totally Enclosed Air Over
Mounting Foot Mount
Current Rating 7.51 A
Service Factor 1
Inverter Duty No
Motor Type Foot Mount
Composition Rolled Steel
Shaft Diameter 0.88 "
Overload Protection None
Length 13.15 "
Approvals cCSAus
Net Weight 43.604 lbs
Gross Weight 43.604 lbs
