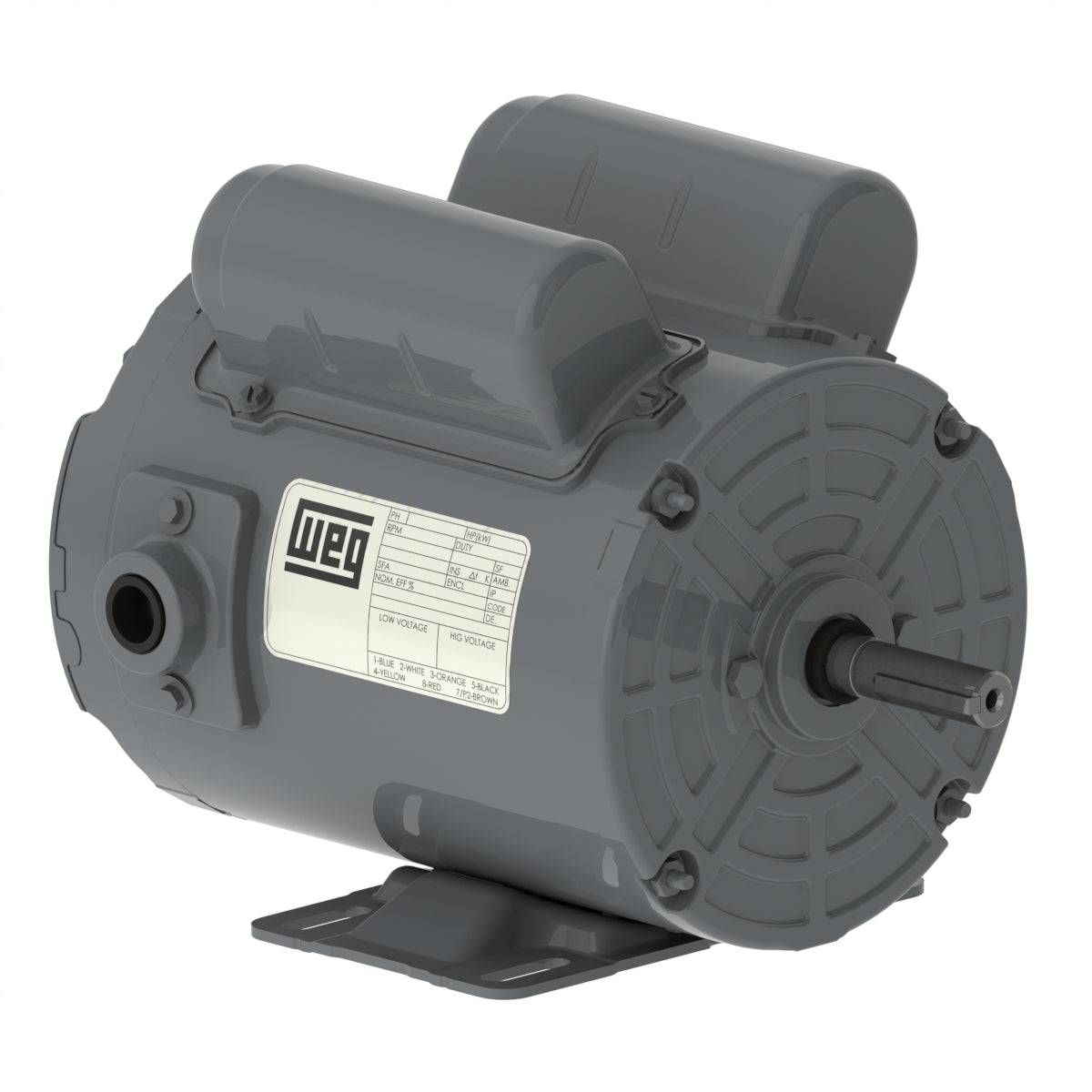

Weg Electric 00336AS1RAF145TZ-S, 3 Hp, 3600 Rpm, 143/5T FR, 208-230 Vac, TEAO, 1 PH, Foot-mounted, Rolled Steel.

00336AS1RAF145TZ-S, 3 Hp, 3600 Rpm, 143/5T FR, 208-230 Vac, TEAO, 1 PH, Foot-mounted, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TEAO

Frame 143/5T
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3490 rpm
Slip 3.06 %
Rated voltage 208-230 V
Rated current 14.0-12.7 A
L. R. Amperes 112-102 A
LRC 8.0x(Code J)
No load current 0.000-4.00 A
Rated torque 4.51 ft.lb
Locked rotor torque 210 %
Breakdown torque 250 %
Locked rotor time 10s (cold) 6s (hot)
Design L
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
