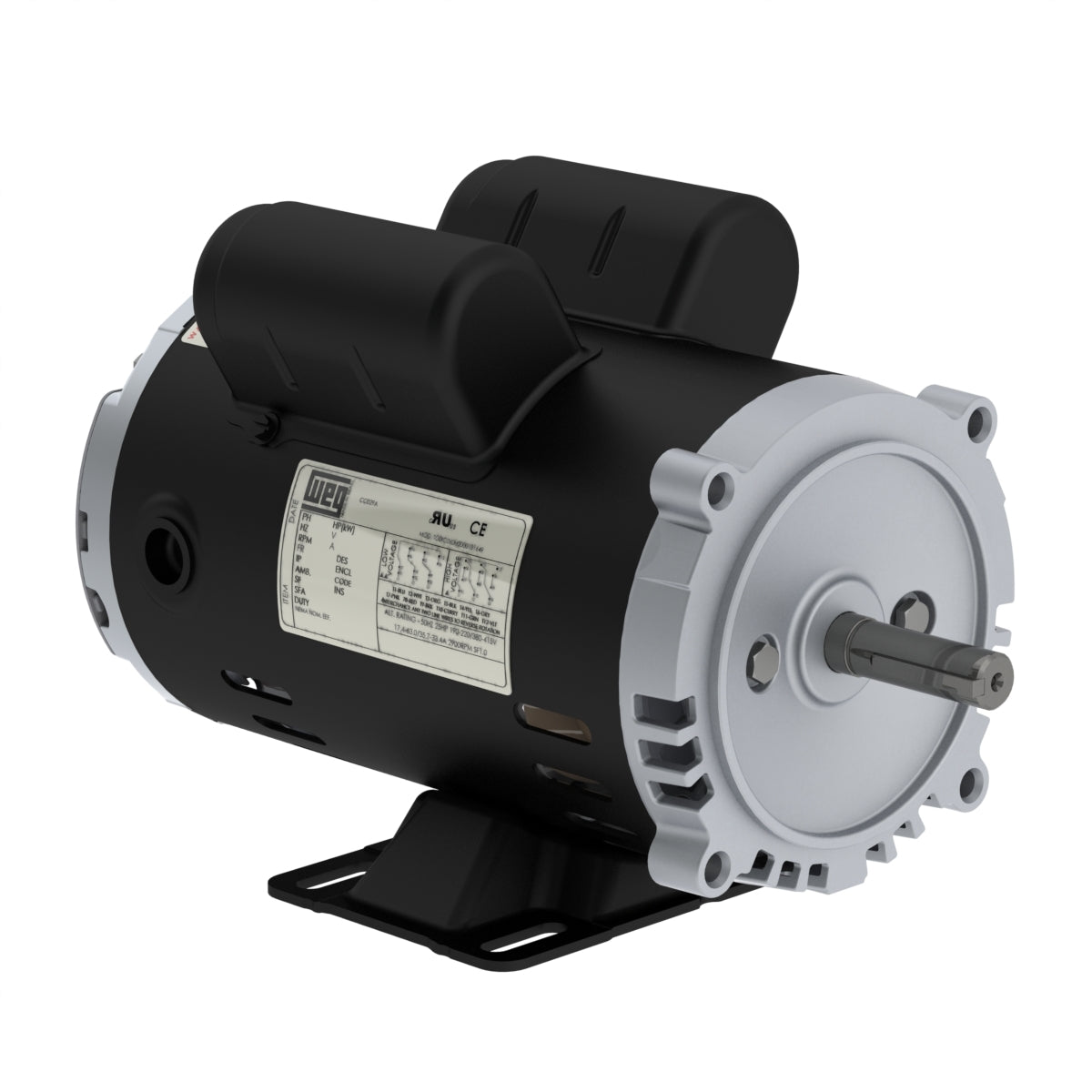

Weg Electric 00336ES1DJP56C-S, 3 Hp, 3600 Rpm, 56C FR, 230 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel Jet Pump.

00336ES1DJP56C-S, 3 Hp, 3600 Rpm, 56C FR, 230 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel Jet Pump.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and keyed shaft end, these versatile single-phase motors provide torque and durability for several applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 56C
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3490 rpm
Slip 3.06 %
Rated voltage 230 V
Rated current 12.7 A
L. R. Amperes 102 A
LRC 8.0x(Code J)
No load current 4.00 A
Rated torque 4.51 ft.lb
Locked rotor torque 210 %
Breakdown torque 250 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0944 sq.ft.lb
Design L
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ CCW
Noise level² 68.0 dB(A)
