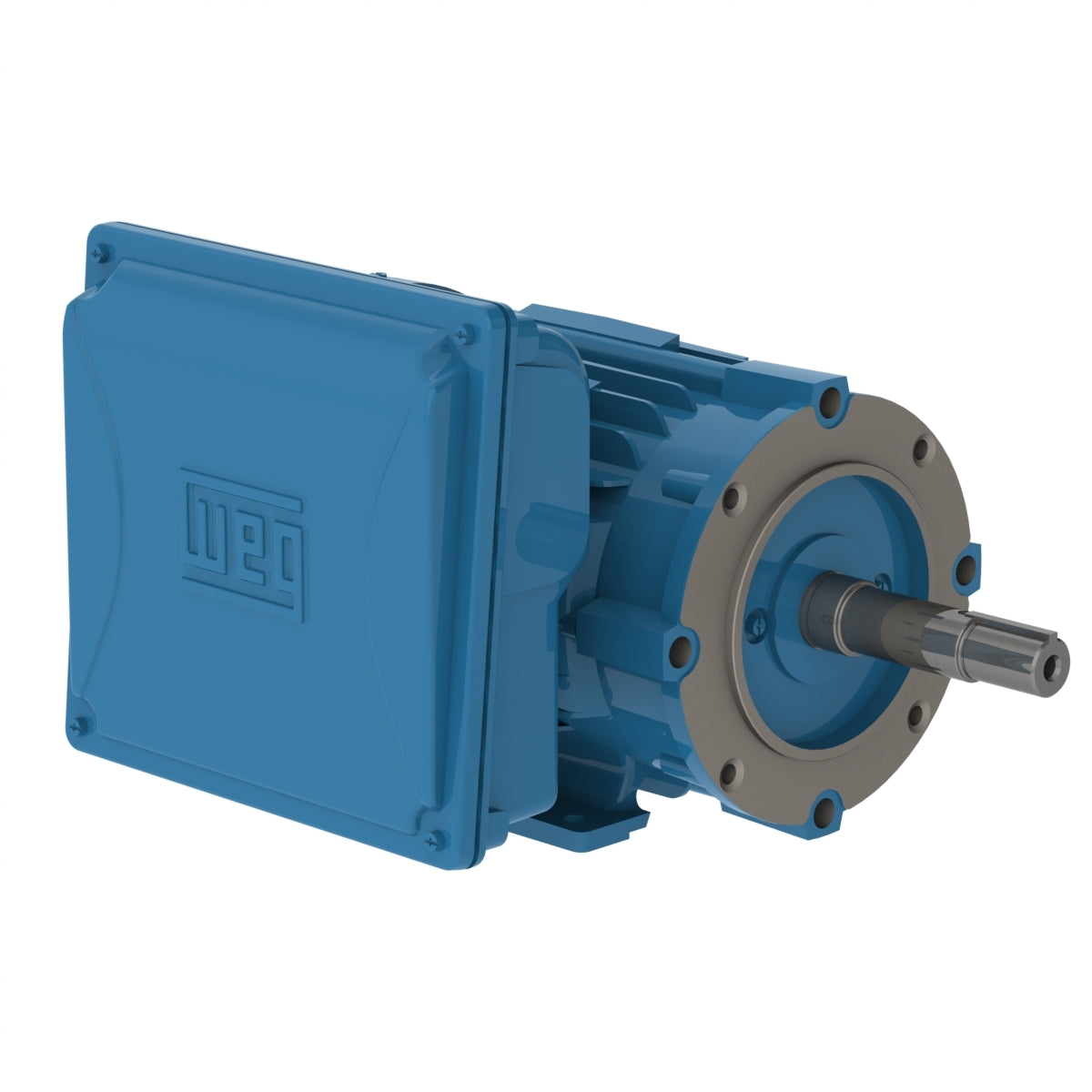

Weg Electric 00336ES1E145JP-W22, 3 Hp, 3600 Rpm, 143/5JP FR, 208-230/460 Vac, TEFC, 1 PH, Foot-mounted, JM Pump.

00336ES1E145JP-W22, 3 Hp, 3600 Rpm, 143/5JP FR, 208-230/460 Vac, TEFC, 1 PH, Foot-mounted, JM Pump.

Engineering Data

High starting torque.
For applications on commercial and industrial pumps (JM/JP - mechanical seal/gasket).
Suitable for domestic and rural power supply conditions.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 143/5JP
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 13.6-12.5/6.25 A
L. R. Amperes 97.9-90.0/45.0 A
LRC 7.2x(Code H)
No load current 2.50-2.90/1.45 A
Rated torque 4.49 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.0664 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
