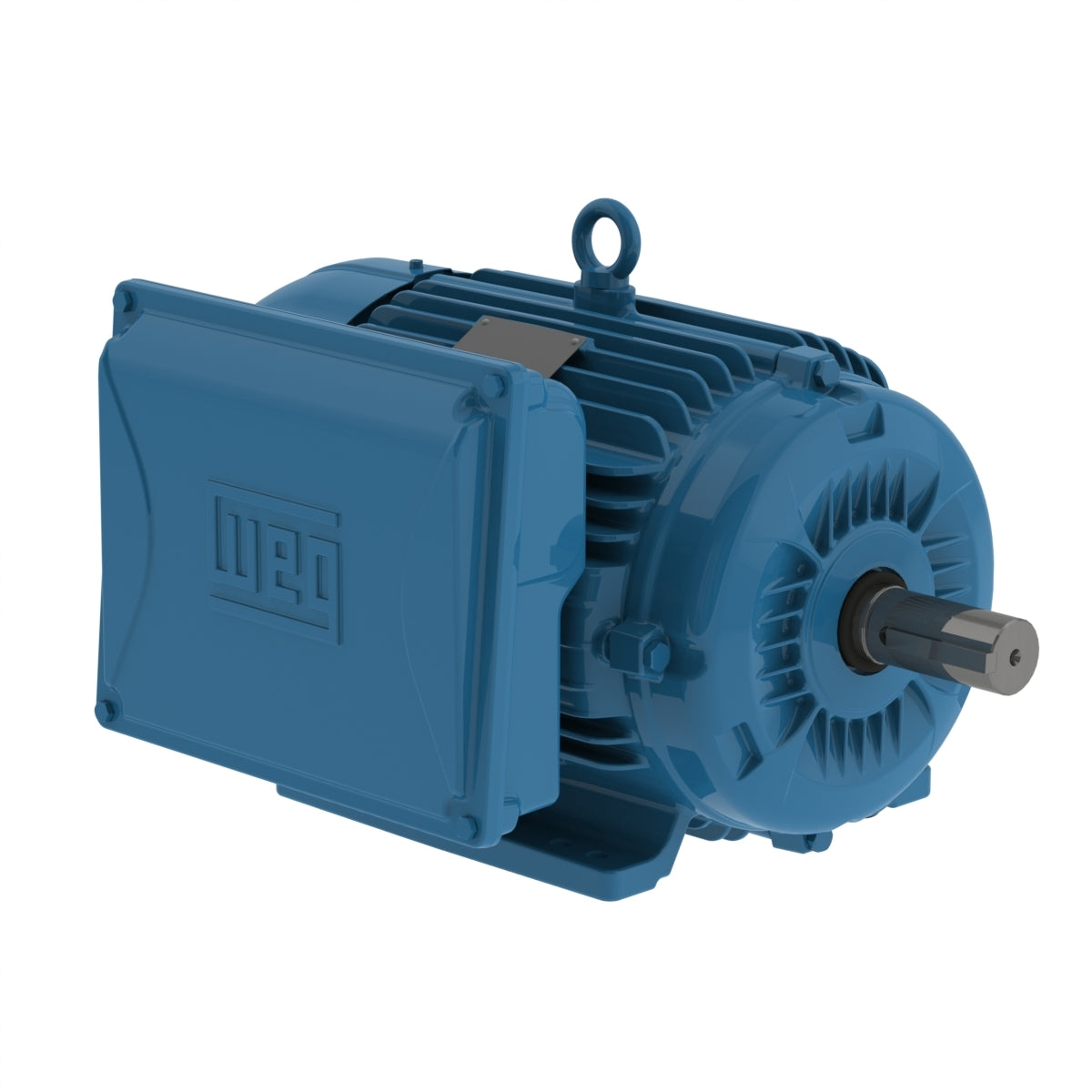

Weg Electric 00336ES1E182T-W22, 3 Hp, 3600 Rpm, 182/4T FR, 208-230/460 Vac, TEFC, 1 PH, Foot-mounted.

00336ES1E182T-W22, 3 Hp, 3600 Rpm, 182/4T FR, 208-230/460 Vac, TEFC, 1 PH, Foot-mounted.

Engineering Data

High starting torque
Suitable for domestic and rural power supply conditions
Adaptable design suitable for a variety of applications and needs

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4T
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 208-230/460 V
Rated current 13.5-12.2/6.12 A
L. R. Amperes 104-94.2/47.1 A
LRC 7.7x(Code J)
No load current 3.45-4.00/2.00 A
Rated torque 4.48 ft.lb
Locked rotor torque 250 %
Breakdown torque 260 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.1571 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
