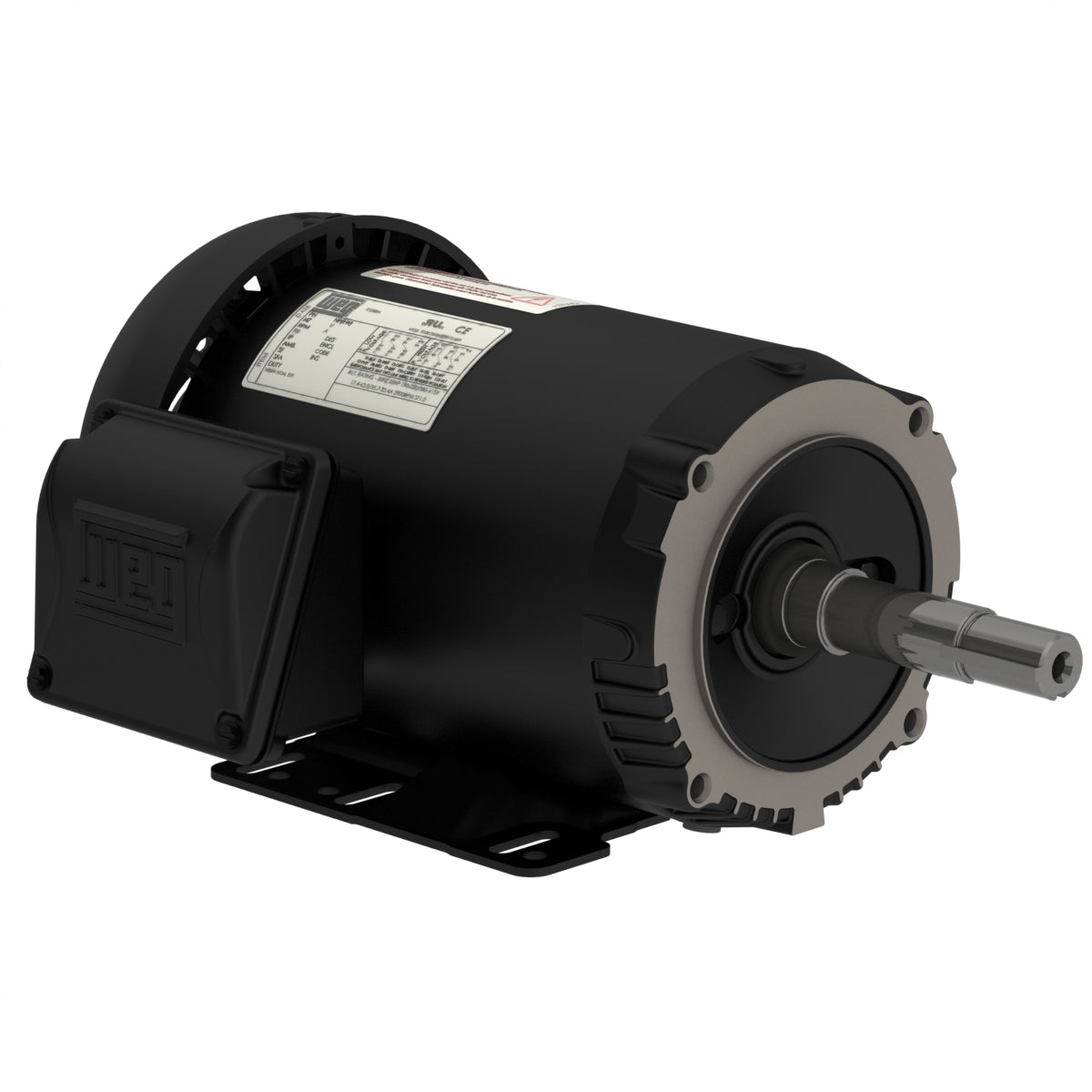

Weg Electric 00336ET3E145JM-S, 3 Hp, 3600 Rpm, 143/5JM FR, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel.

00336ET3E145JM-S, 3 Hp, 3600 Rpm, 143/5JM FR, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 143/5JM
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 230/460 V
Rated current 7.02/3.51 A
L. R. Amperes 66.7/33.3 A
LRC 9.5x(Code K)
No load current 2.56/1.28 A
Rated torque 4.50 ft.lb
Locked rotor torque 300 %
Breakdown torque 380 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.1663 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
