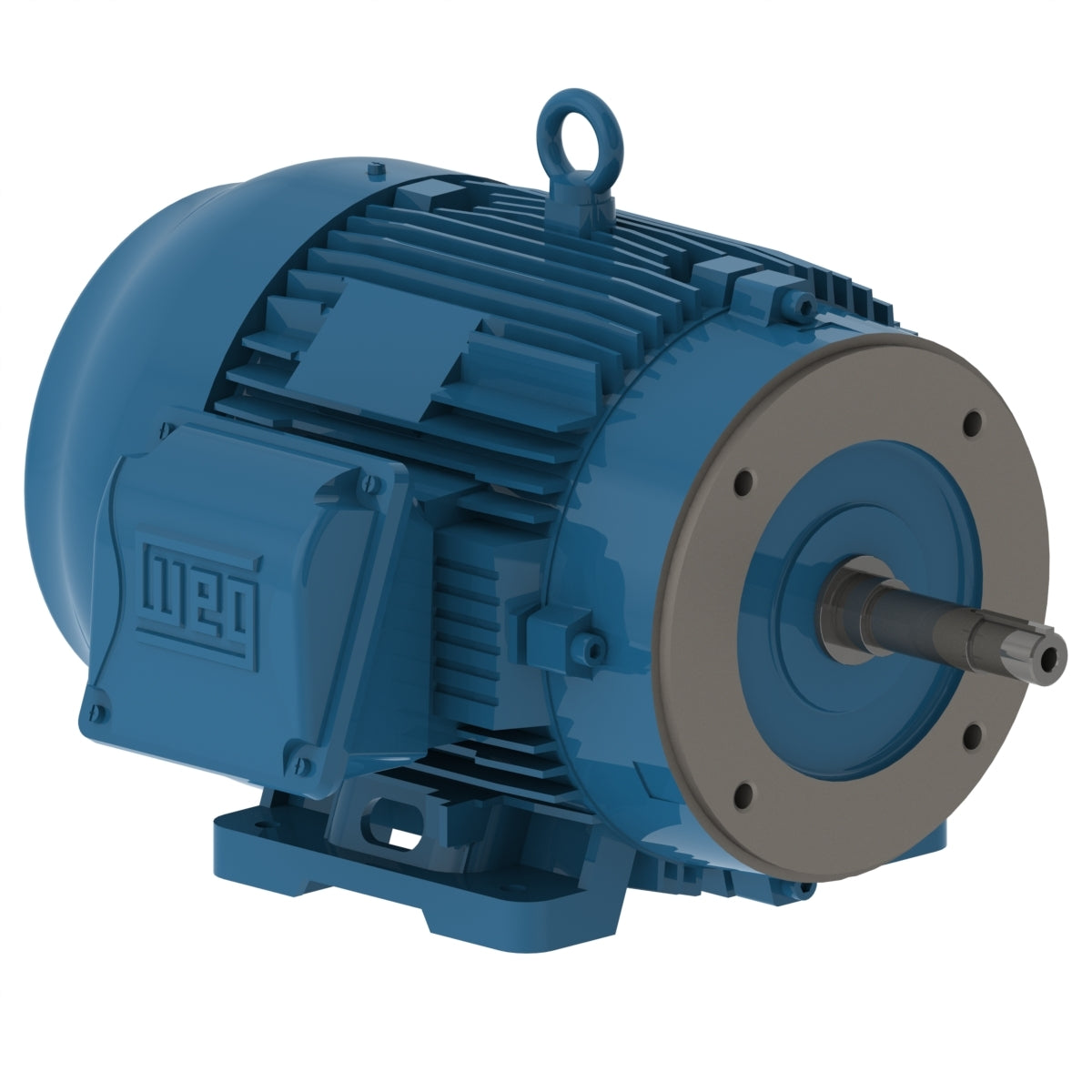

Weg Electric 00336ET3H182JP-W22, 3 Hp, 3600 Rpm, 182/4JP Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 Close Coupled Pump JP NEMA Standard Efficiency.

00336ET3H182JP-W22, 3 Hp, 3600 Rpm, 182/4JP Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 Close Coupled Pump JP NEMA Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4JP
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3515 rpm
Slip 2.36 %
Rated voltage 575 V
Rated current 2.90 A
L. R. Amperes 25.0 A
LRC 8.6x(Code K)
No load current 1.04 A
Rated torque 4.48 ft.lb
Locked rotor torque 220 %
Breakdown torque 340 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 0.1889 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
