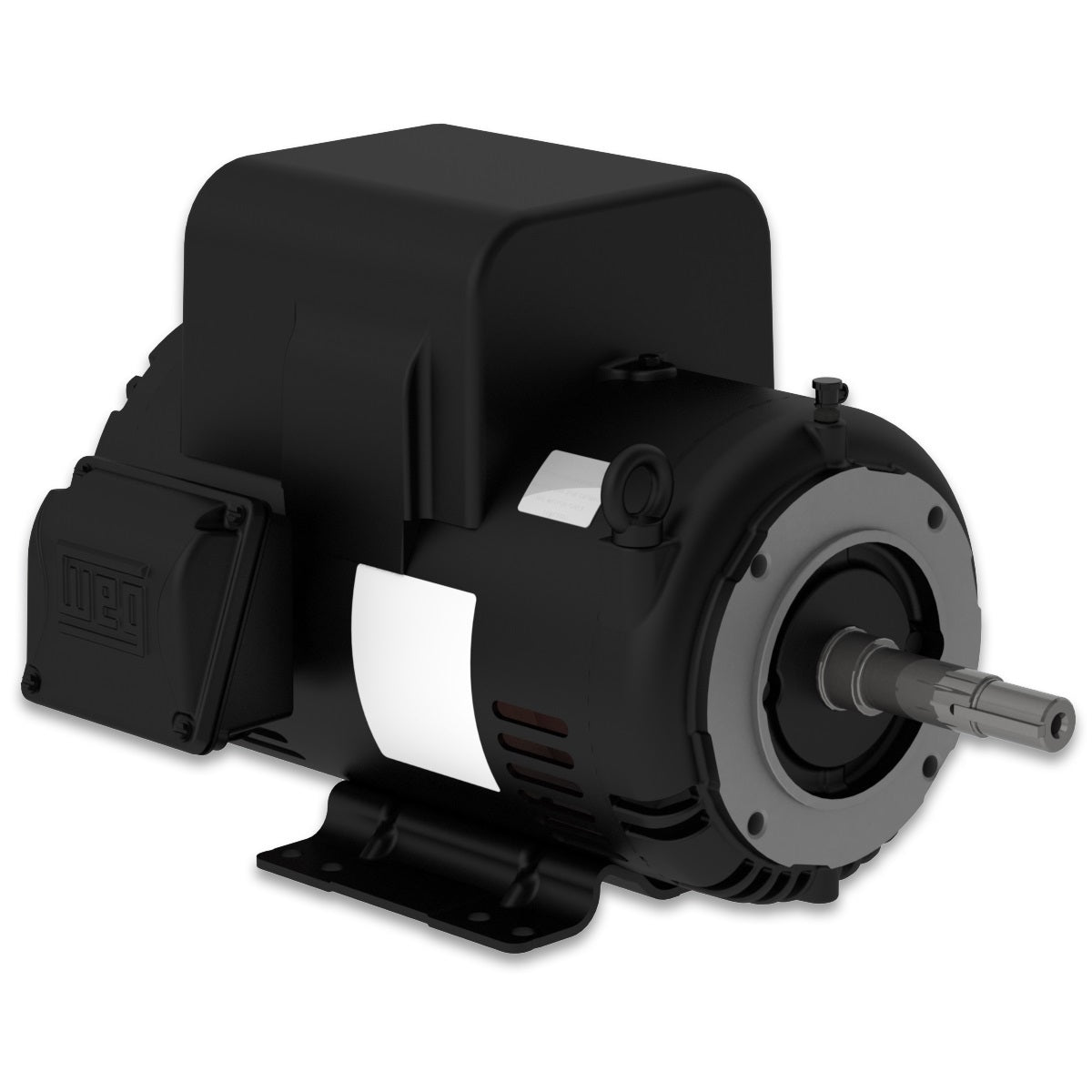

Weg Electric 00336OS1B182JM-S, 3 Hp, 3600 Rpm, 182/4JM Frame, 115/208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel Pump JM.

00336OS1B182JM-S, 3 Hp, 3600 Rpm, 182/4JM Frame, 115/208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel Pump JM.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 182/4JM
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 115/208-230 V
Rated current 25.8/13.8-12.9 A
L. R. Amperes 173/92.5-86.4 A
LRC 6.7x(Code H)
No load current 10.5/3.90-5.20 A
Rated torque 4.49 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 13.0 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
