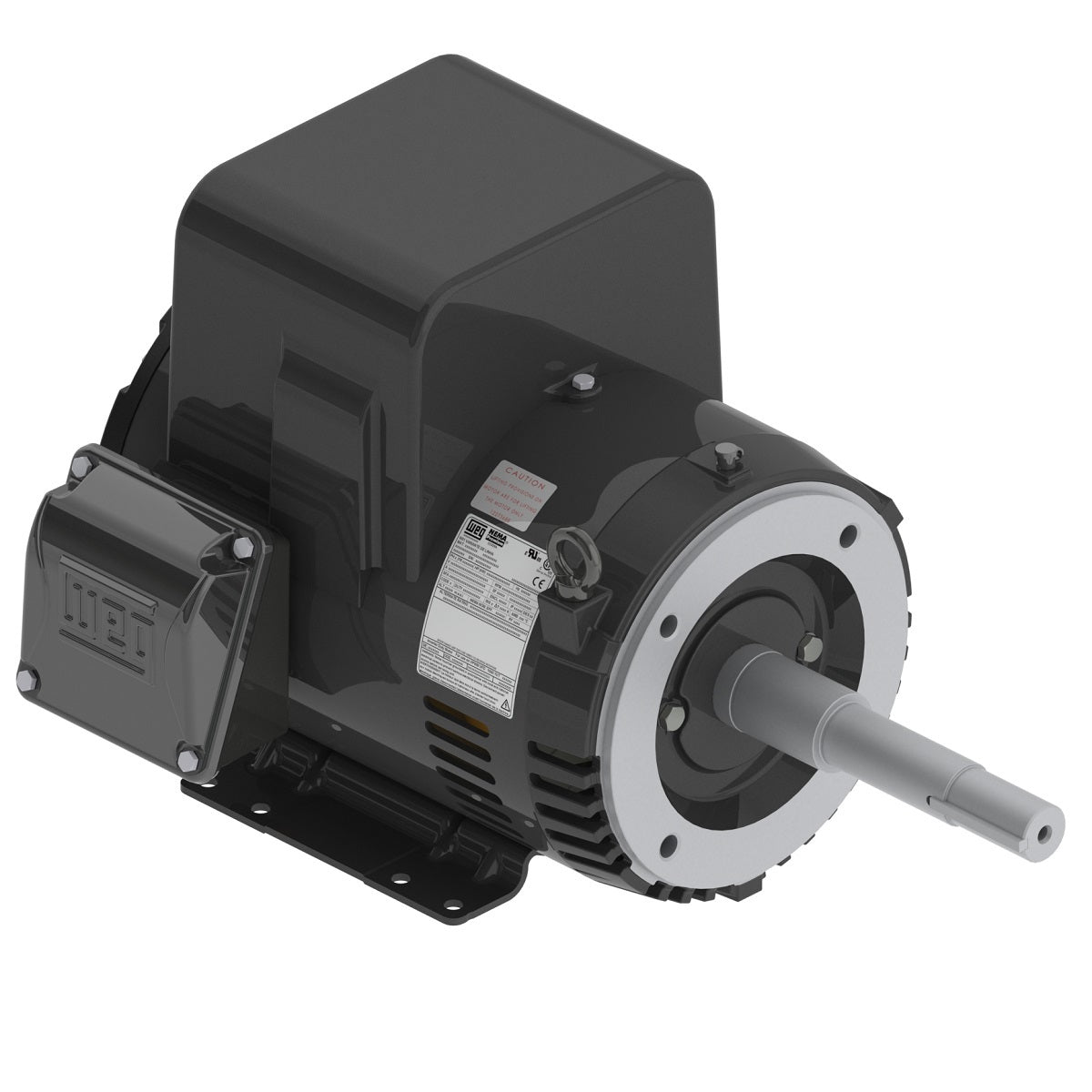

Weg Electric 00336OS1B182JP-S, 3 Hp, 3600 Rpm, 182/4JP Frame, 115/208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel Pump JP.

00336OS1B182JP-S, 3 Hp, 3600 Rpm, 182/4JP Frame, 115/208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel Pump JP.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 182/4JP
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 115/208-230 V
Rated current 25.3/14.0-12.7 A
L. R. Amperes 177/98.0-88.9 A
LRC 7.0x(Code H)
No load current 12.6/5.70-6.30 A
Rated torque 4.49 ft.lb
Locked rotor torque 235 %
Breakdown torque 270 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.1566 sq.ft.lb
Design L
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
