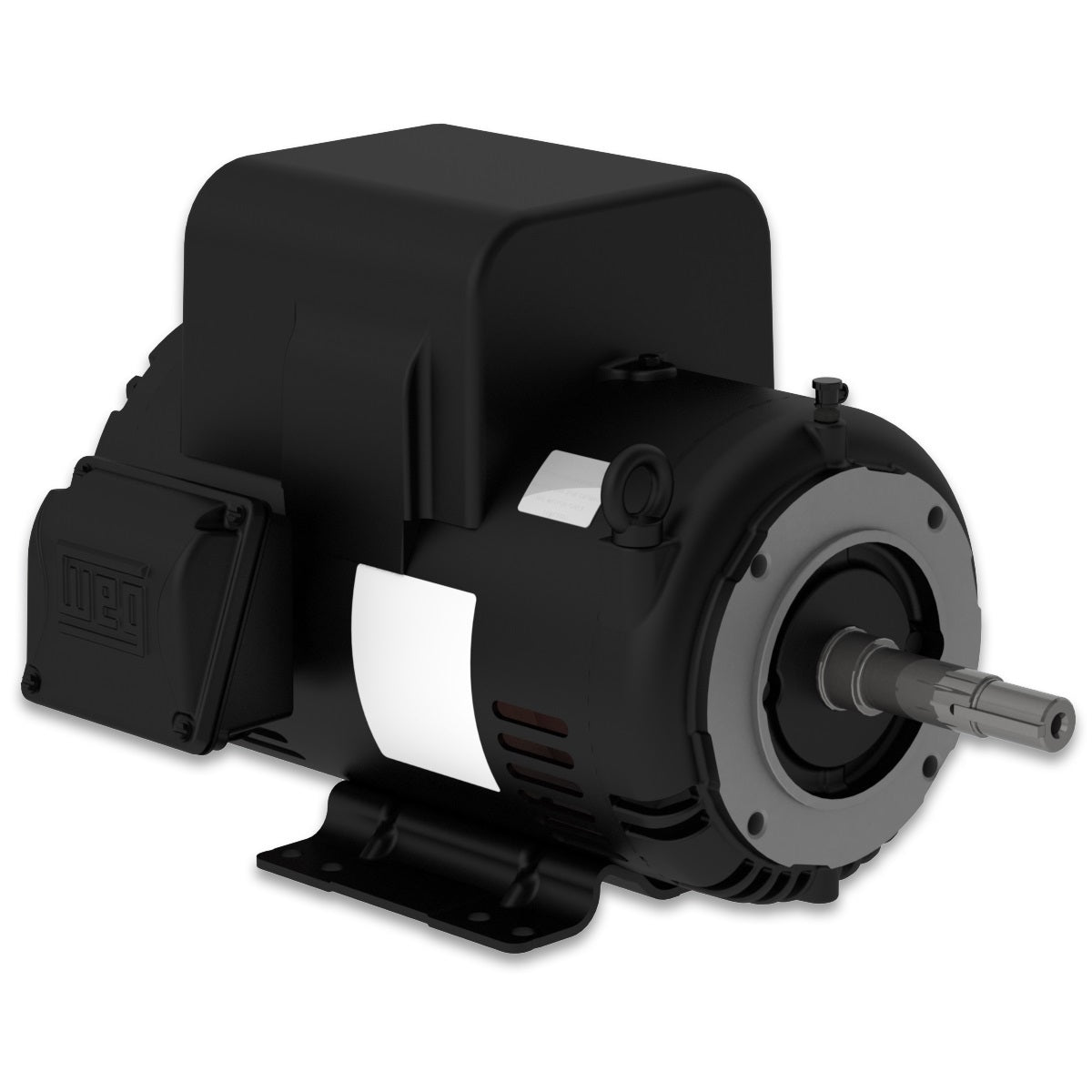

Weg Electric 00336OS1C184T-S, 3 Hp, 3600 Rpm, 182/4T Frame, 208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

00336OS1C184T-S, 3 Hp, 3600 Rpm, 182/4T Frame, 208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 182/4T
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3470 rpm
Slip 3.61 %
Rated voltage 208-230 V
Rated current 14.3-12.4 A
L. R. Amperes 87.2-75.6 A
LRC 6.1x(Code G)
No load current 2.25-2.60 A
Rated torque 4.54 ft.lb
Locked rotor torque 185 %
Breakdown torque 195 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.1305 sq.ft.lb
Design L
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
