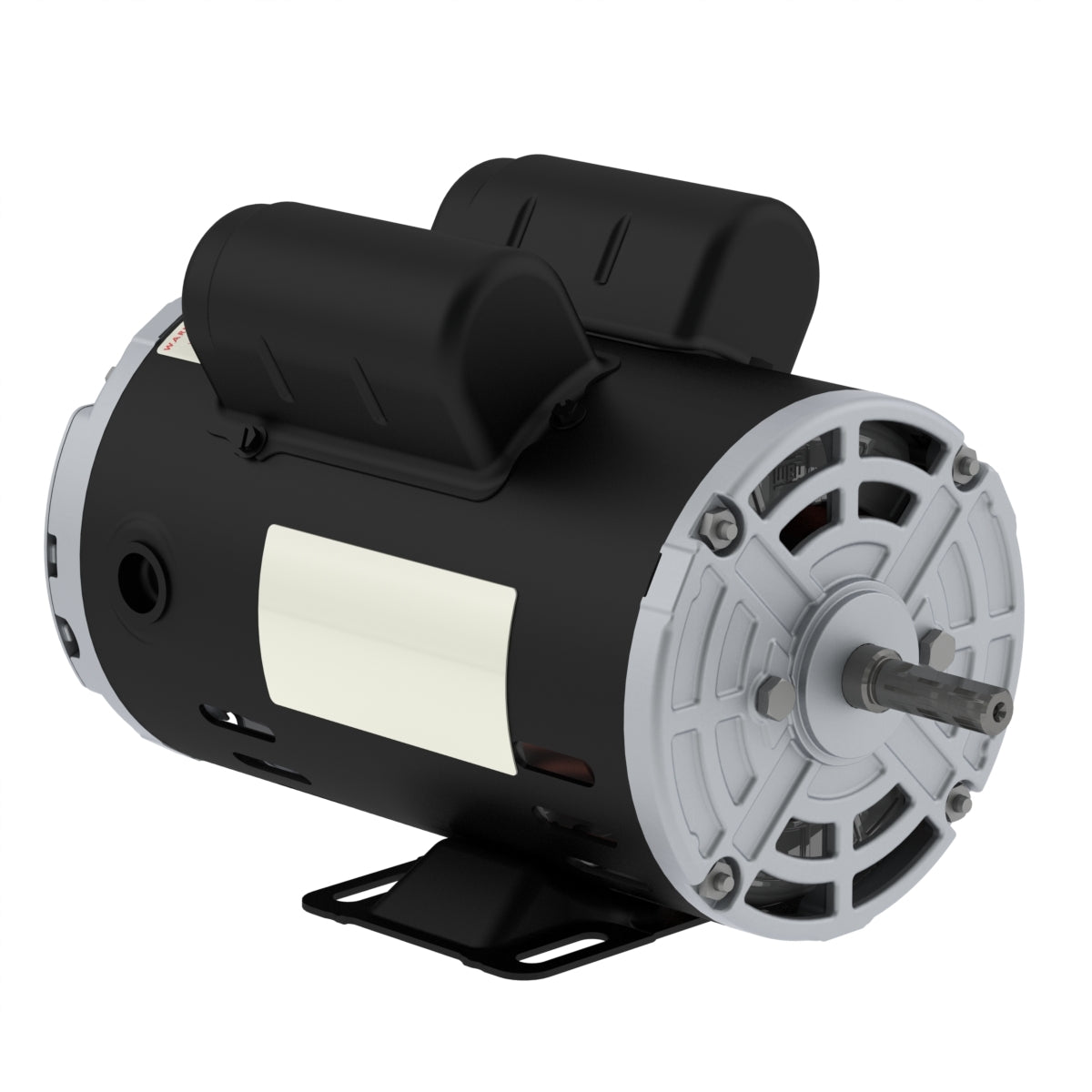

Weg Electric 00336OS1CCD56-S, 3 Hp, 3600 Rpm, 56H Frame, 208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel Compressor Duty.

00336OS1CCD56-S, 3 Hp, 3600 Rpm, 56H Frame, 208-230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel Compressor Duty.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56H
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3480 rpm
Slip 3.33 %
Rated voltage 208-230 V
Rated current 13.0-12.7 A
L. R. Amperes 88.4-86.4 A
LRC 6.8x(Code H)
No load current 4.05-4.70 A
Rated torque 4.53 ft.lb
Locked rotor torque 165 %
Breakdown torque 250 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.0707 sq.ft.lb
Design L
Insulation Class F
Temperature rise 105 K
Service factor 1.00 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
