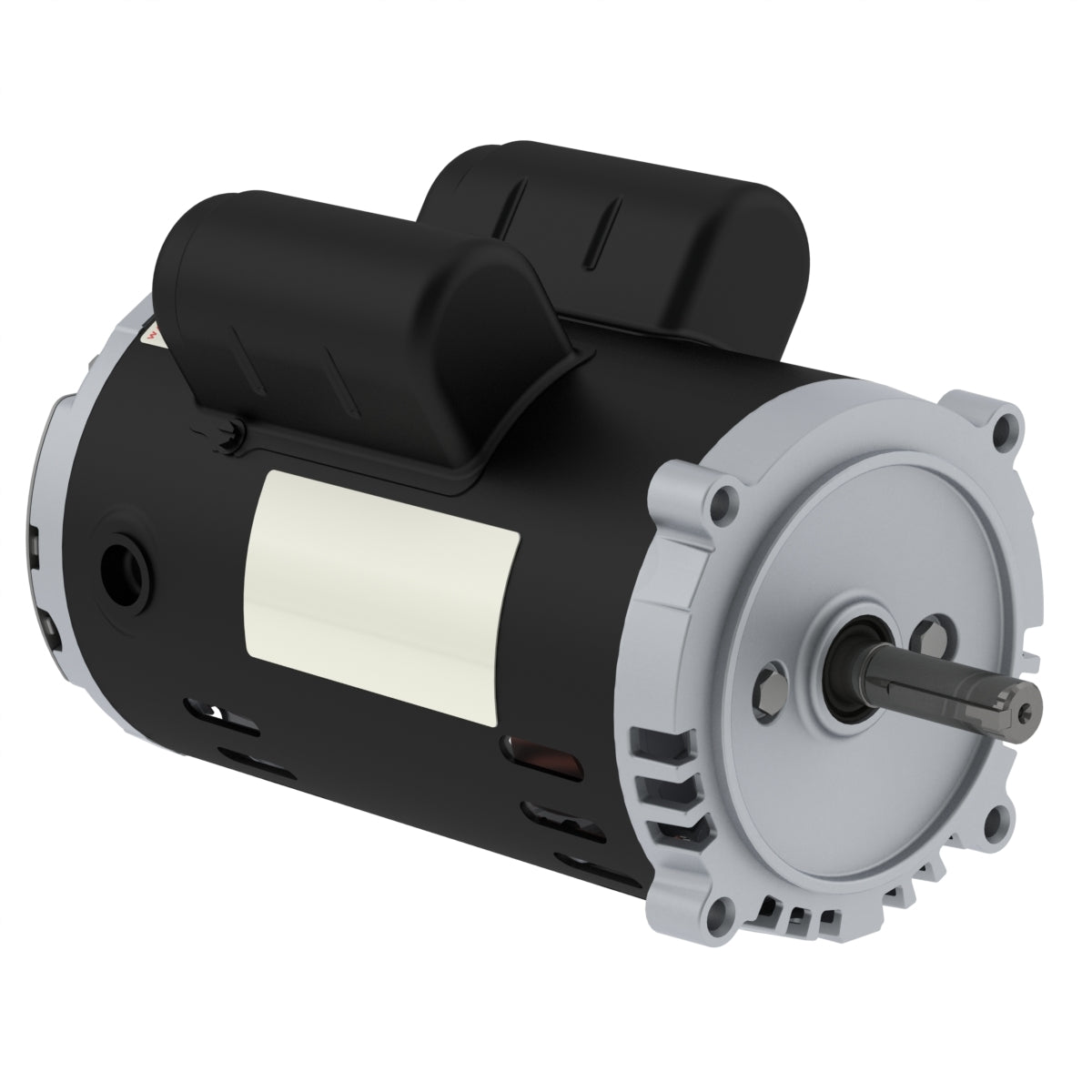

Weg Electric 00336OS1DJPR56C-S, 3 Hp, 3600 Rpm, 56C Frame, 230 Vac, ODP, 1 PH, Footless, Rolled Steel Jet Pump.

00336OS1DJPR56C-S, 3 Hp, 3600 Rpm, 56C Frame, 230 Vac, ODP, 1 PH, Footless, Rolled Steel Jet Pump.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and keyed shaft end, these versatile single-phase motors provide torque and durability for several applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56C
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3485 rpm
Slip 3.19 %
Rated voltage 230 V
Rated current 13.2 A
L. R. Amperes 106 A
LRC 8.0x(Code K)
No load current 4.50 A
Rated torque 4.52 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0864 sq.ft.lb
Design L
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 58.0 dB(A)
