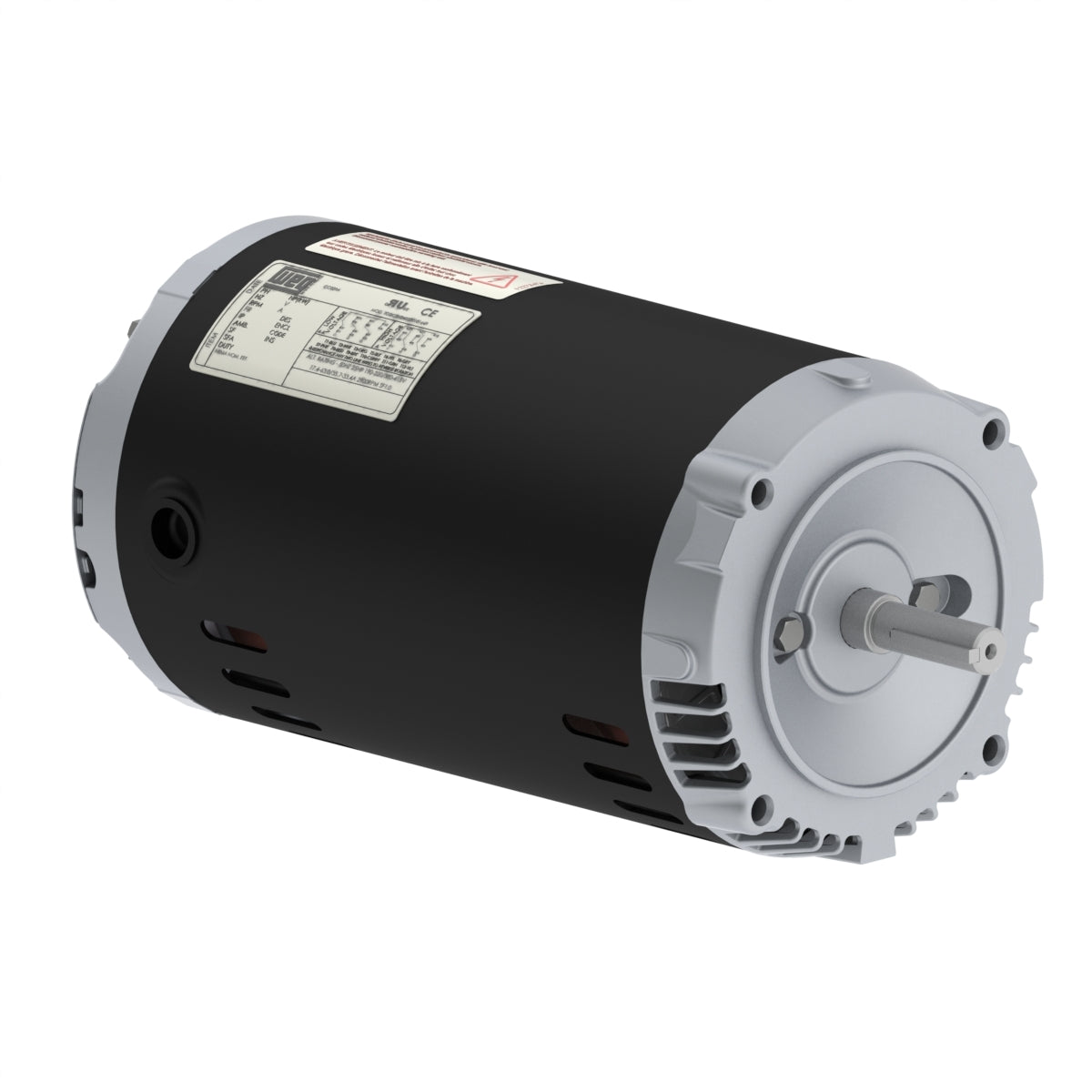

Weg Electric 00336OS3EJPR56C-S, 3 Hp, 3600 Rpm, 56C FR, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel Jet Pump.

00336OS3EJPR56C-S, 3 Hp, 3600 Rpm, 56C FR, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel Jet Pump.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56C
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3450 rpm
Slip 4.17 %
Rated voltage 230/460 V
Rated current 7.78/3.89 A
L. R. Amperes 54.5/27.2 A
LRC 7.0x(Code J)
No load current 3.20/1.60 A
Rated torque 4.57 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.0959 sq.ft.lb
Design A
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 62.0 dB(A)
