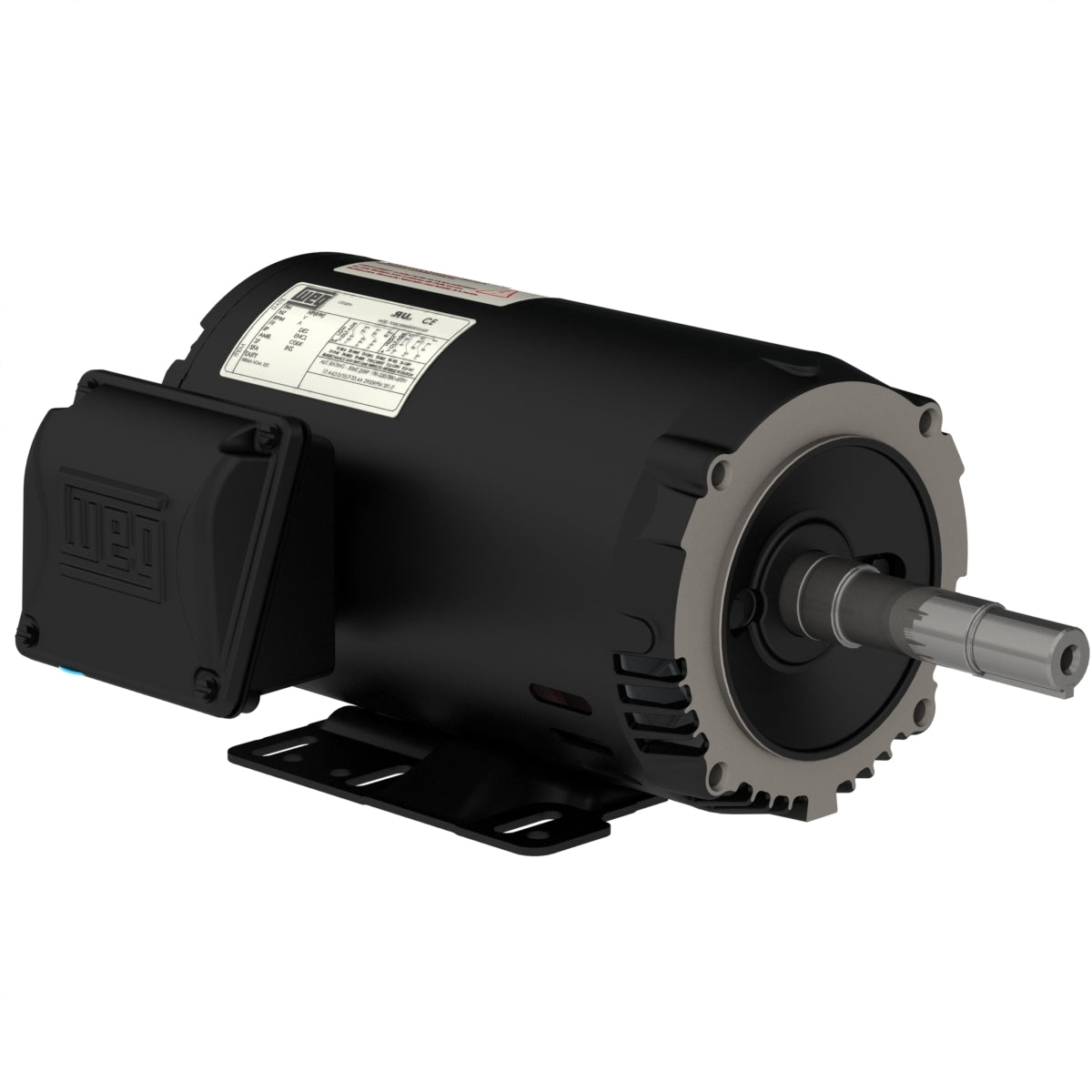

Weg Electric 00336OT3E145JP-S, 3 Hp, 3600 Rpm, 143/5JP Frame, 230/460//190-220/380-415 Vac, ODP, 3 Ph., Foot-mounted, Rolled Steel JM Pump.

00336OT3E145JP-S, 3 Hp, 3600 Rpm, 143/5JP Frame, 230/460//190-220/380-415 Vac, ODP, 3 Ph., Foot-mounted, Rolled Steel JM Pump.

Engineering Data

The W01 “JP” (gasket) motors were especially developed for application on pumps with direct coupling. They maximum performance and robustness in environments where dirt and humidity are minimal.

Product features

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 143/5JP
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3480 rpm
Slip 3.33 %
Rated voltage 230/460 V
Rated current 7.18/3.59 A
L. R. Amperes 57.4/28.7 A
LRC 8.0x(Code J)
No load current 2.60/1.30 A
Rated torque 4.53 ft.lb
Locked rotor torque 229 %
Breakdown torque 300 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.1279 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
