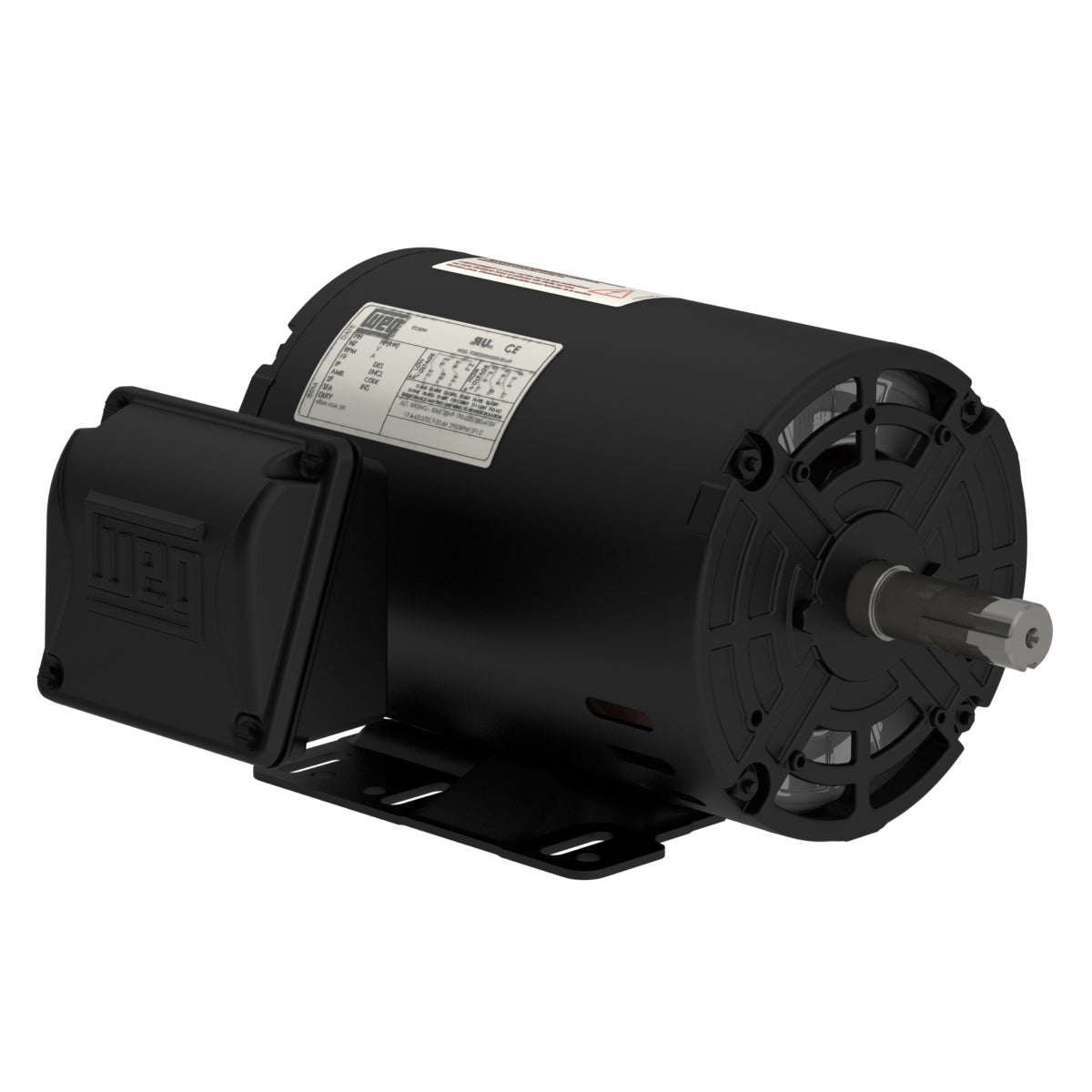

Weg Electric 00336OT3E145T-S, 3 Hp, 3600 Rpm, 143/5T Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel NEMA Premium.

00336OT3E145T-S, 3 Hp, 3600 Rpm, 143/5T Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel NEMA Premium.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for applications where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 143/5T
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3480 rpm
Slip 3.33 %
Rated voltage 230/460 V
Rated current 7.18/3.59 A
L. R. Amperes 57.4/28.7 A
LRC 8.0x(Code J)
No load current 2.60/1.30 A
Rated torque 4.53 ft.lb
Locked rotor torque 229 %
Breakdown torque 300 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.1279 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
