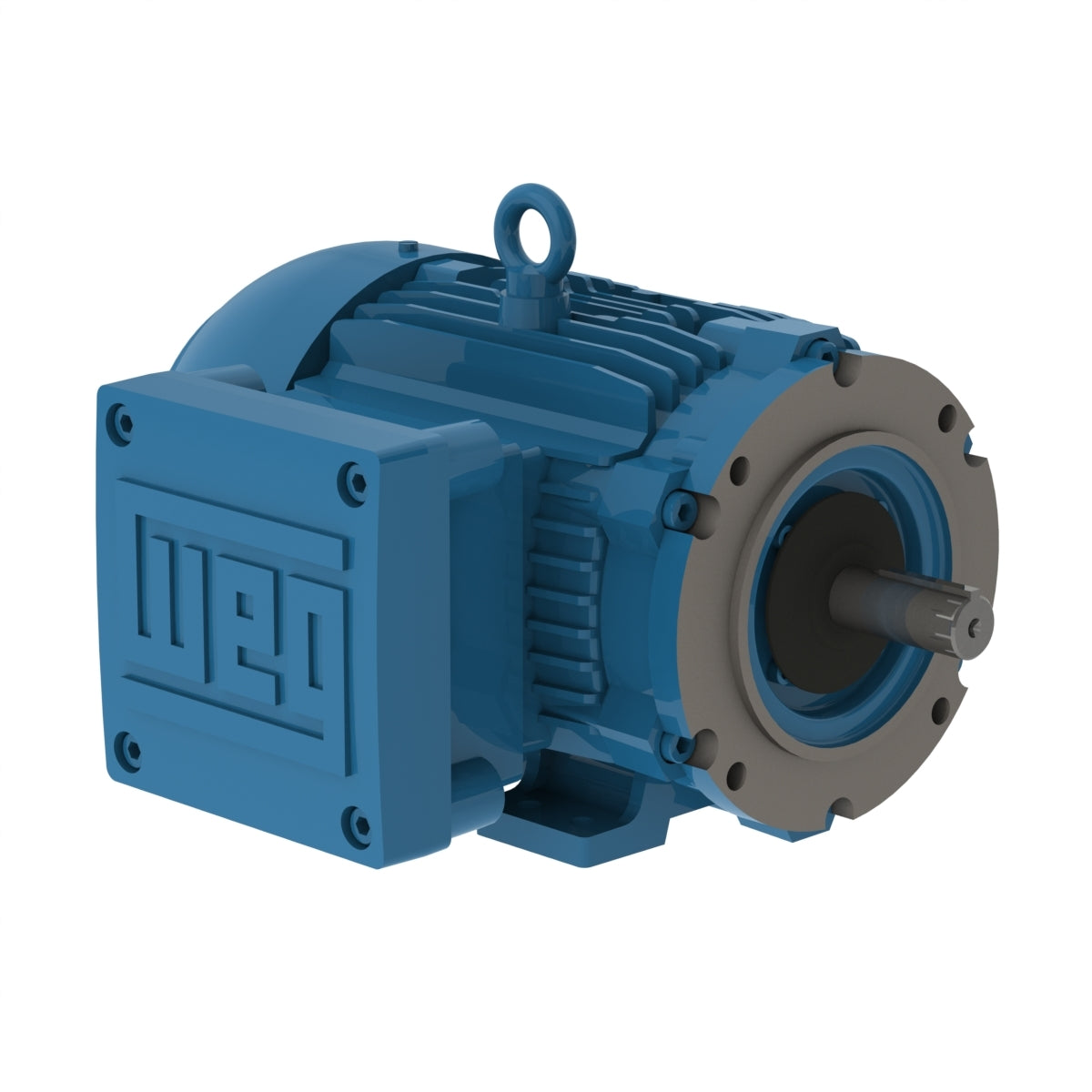

Weg Electric 00336XT3E182TC, 3 Hp, 3600 Rpm, 182/4TC FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, Explosion-Proof Motor.

00336XT3E182TC, 3 Hp, 3600 Rpm, 182/4TC FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, Explosion-Proof Motor.

Engineering Data

WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4TC
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 7.52/3.76 A
L. R. Amperes 63.2/31.6 A
LRC 8.4x(Code K)
No load current 2.80/1.40 A
Rated torque 4.49 ft.lb
Locked rotor torque 250 %
Breakdown torque 400 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 0.1471 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
