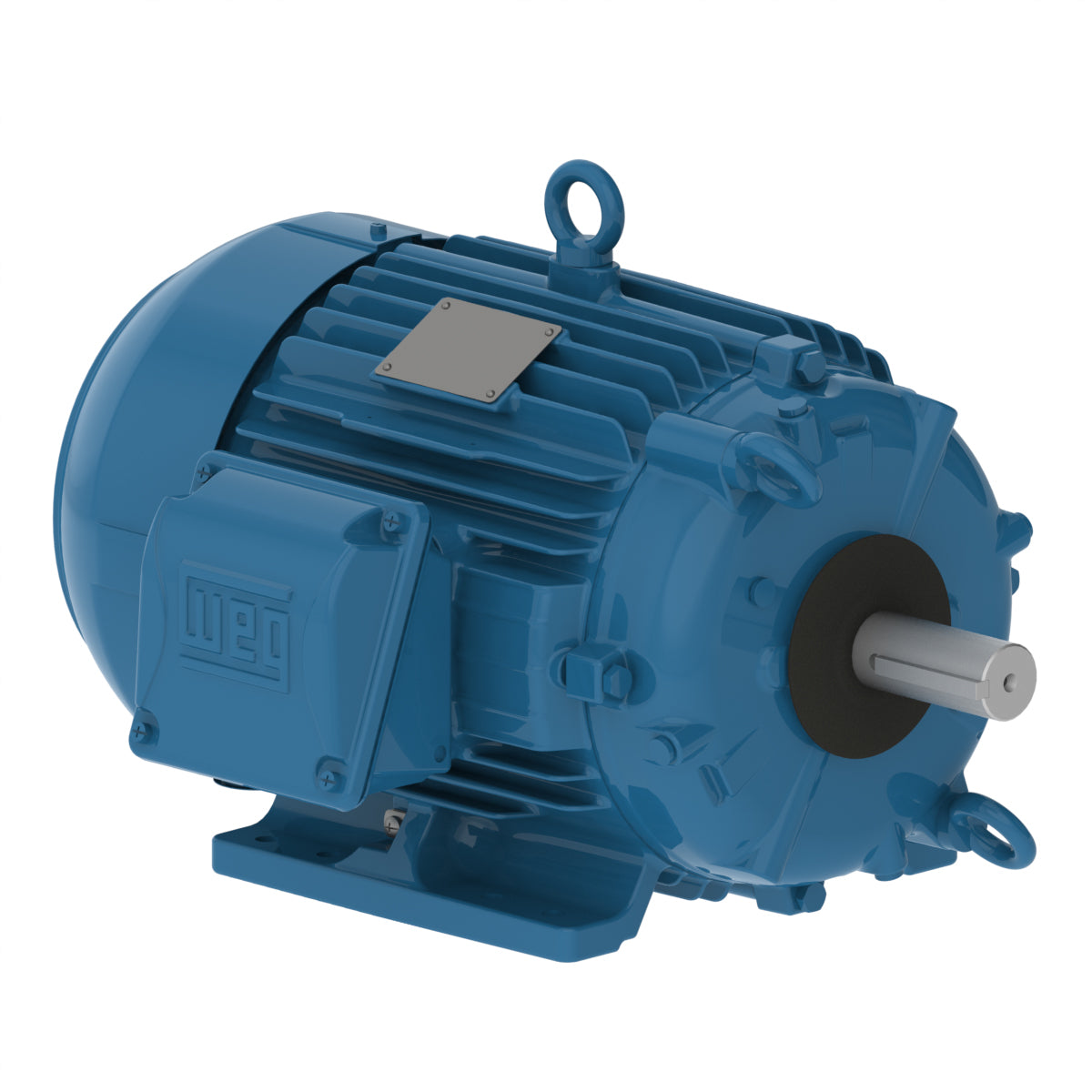

Weg Electric 00389EP3QCT182VF1-W2, 3 Hp, 900/1800 Rpm, 182T Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower High Efficiency.

00389EP3QCT182VF1-W2, 3 Hp, 900/1800 Rpm, 182T Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower High Efficiency.

Engineering Data

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 8/4
Degree of Protection IP55
Synchronous speed 900/1800 rpm
Output rating 0.75/3.0 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182T
Output 3 HP (2.2 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 460 V
Rated current 3.99 A
L. R. Amperes 29.9 A
LRC 7.5x(Code J)
No load current 2.30 A
Rated torque 8.98 ft.lb
Locked rotor torque 200 %
Breakdown torque 290 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.3821 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
