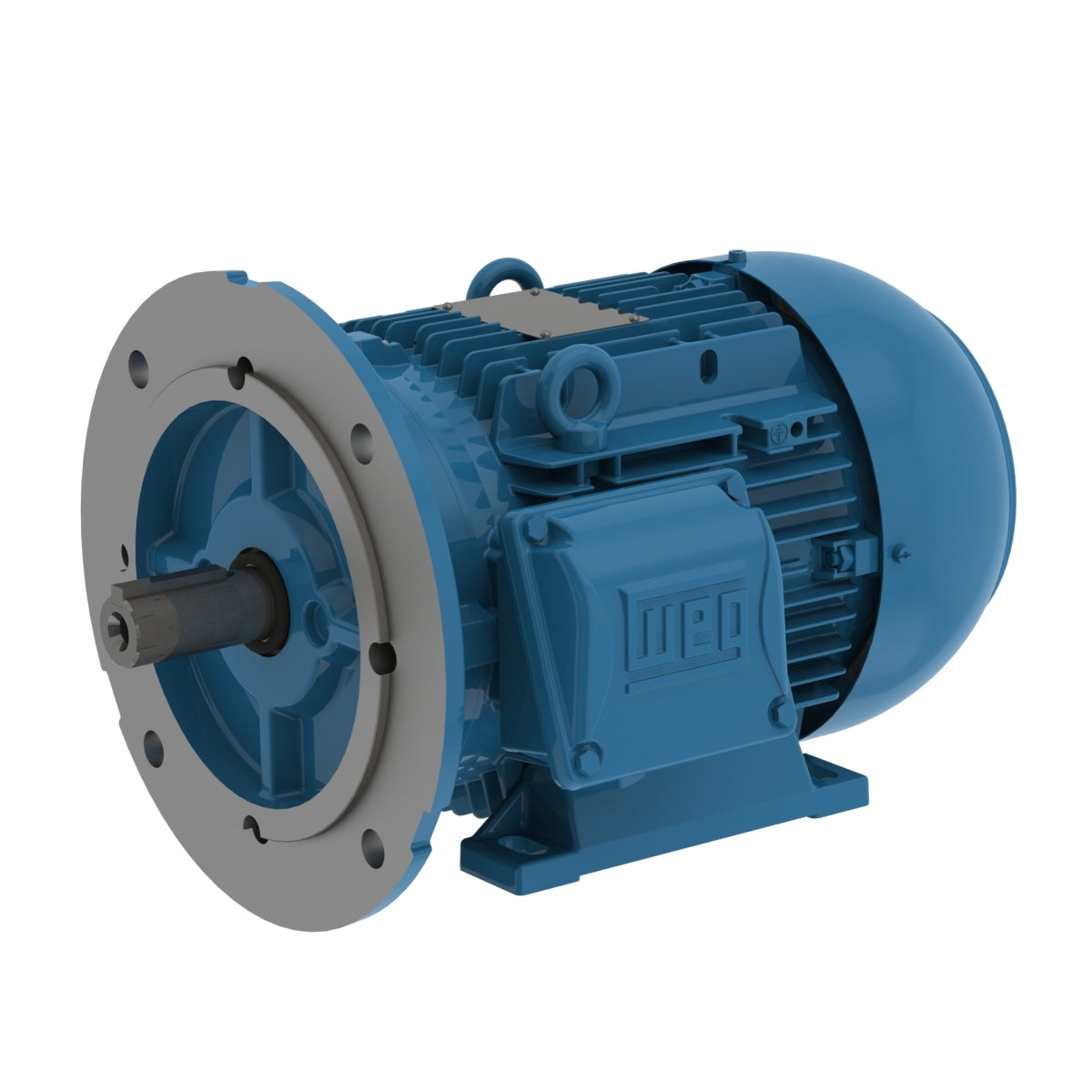

Weg Electric 00412ET3YAL132MFF-W2, 5 1/2 Hp, 1200 Rpm, 132M Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, Multimounting.

00412ET3YAL132MFF-W2, 5 1/2 Hp, 1200 Rpm, 132M Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, Multimounting.

Engineering Data

Aluminum frame and removable feet being able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 5.5 HP
Mounting Foot-mounted
Flange FF
Mounting B35L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 132M
Output 5.5 HP (4 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1165 rpm
Slip 2.92 %
Rated voltage 460 V
Rated current 7.90 A
L. R. Amperes 55.3 A
LRC 7.0
No load current 4.80 A
Rated torque 24.8 ft.lb
Locked rotor torque 190 %
Breakdown torque 300 %
Locked rotor time 77s (cold) 43s (hot)
Moment of inertia (J) 1.34 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
