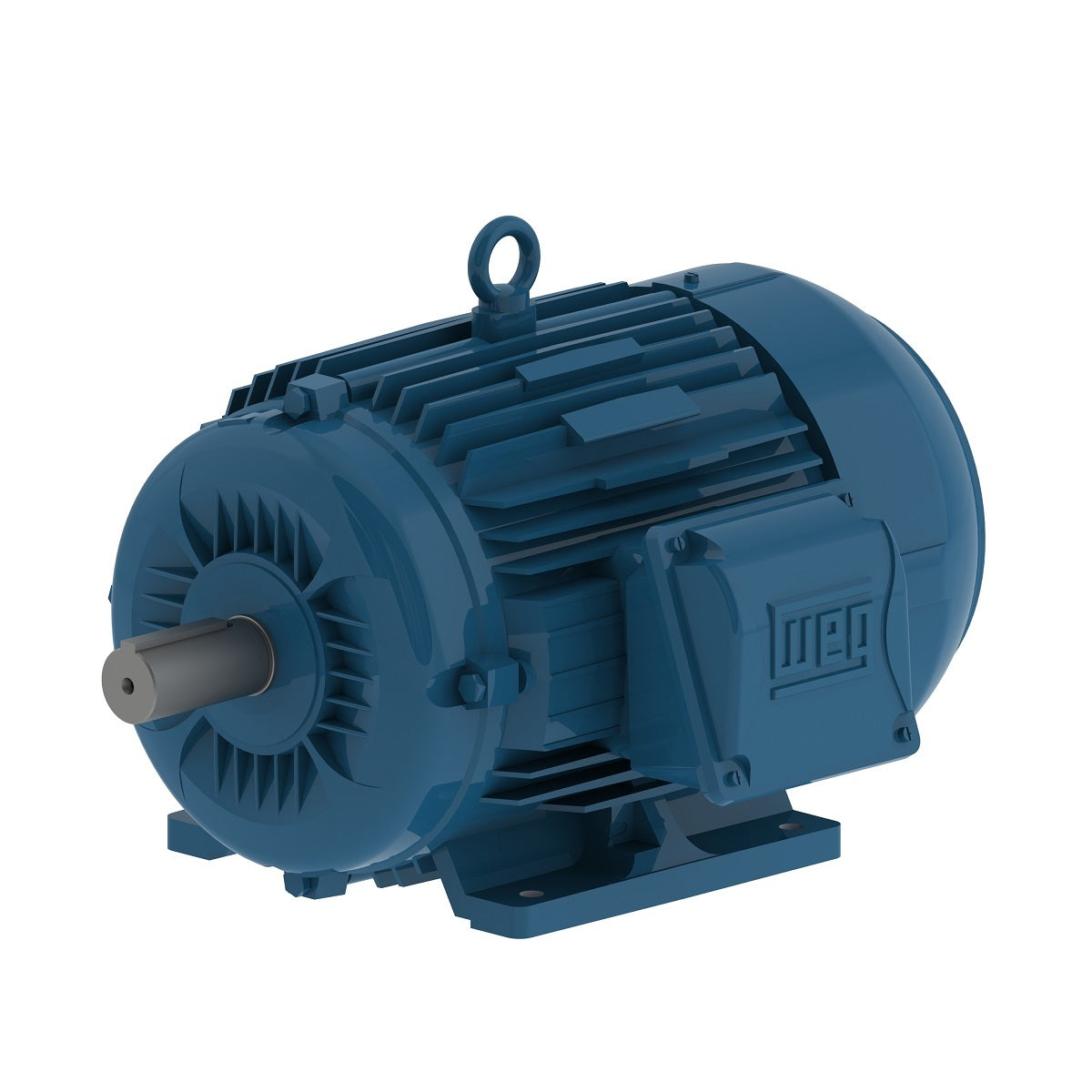

Weg Electric 00436ET3Y112M-W22, 5 1/2 Hp, 3600 Rpm, 112M Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric.

00436ET3Y112M-W22, 5 1/2 Hp, 3600 Rpm, 112M Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 5.5 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3515 rpm
Slip 2.36 %
Rated voltage 460 V
Rated current 6.67 A
L. R. Amperes 63.4 A
LRC 9.5
No load current 2.90 A
Rated torque 8.22 ft.lb
Locked rotor torque 280 %
Breakdown torque 440 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.1898 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
