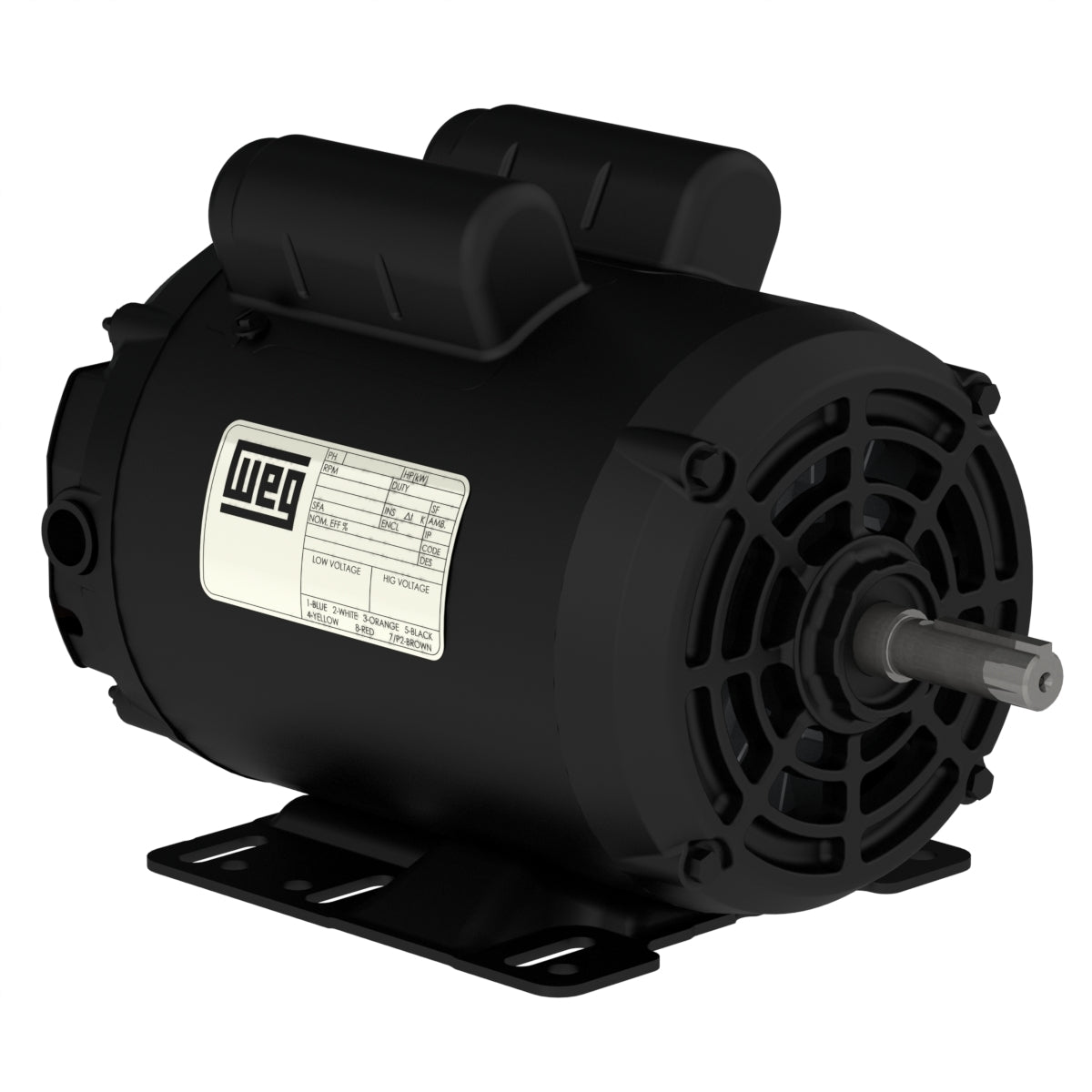

Weg Electric 00436OS1DCDG56HZ, 4 Hp, 3600 Rpm, G56HZ Frame, 230 Vac, ODP, 3 PH, Foot-mounted, Compressor Duty.

00436OS1DCDG56HZ, 4 Hp, 3600 Rpm, G56HZ Frame, 230 Vac, ODP, 3 PH, Foot-mounted, Compressor Duty.

Engineering Data

Motor especially conceived to meet the high torques required for application on air compressors. Ball bearings and manual thermal protection, among other electrical and mechanical characteristics, are available as standard feature in all the line and ensure long service life of the motor.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230 V
Number of poles 2
Degree of Protection IP21
Synchronous speed 3600 rpm
Output rating 4 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame G56HZ
Output 4 HP (3 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3480 rpm
Slip 3.33 %
Rated voltage 230 V
Rated current 16.8 A
L. R. Amperes 113 A
LRC 6.7x(Code H)
No load current 5.50 A
Rated torque 6.04 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 9s (cold) 5s (hot)
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
