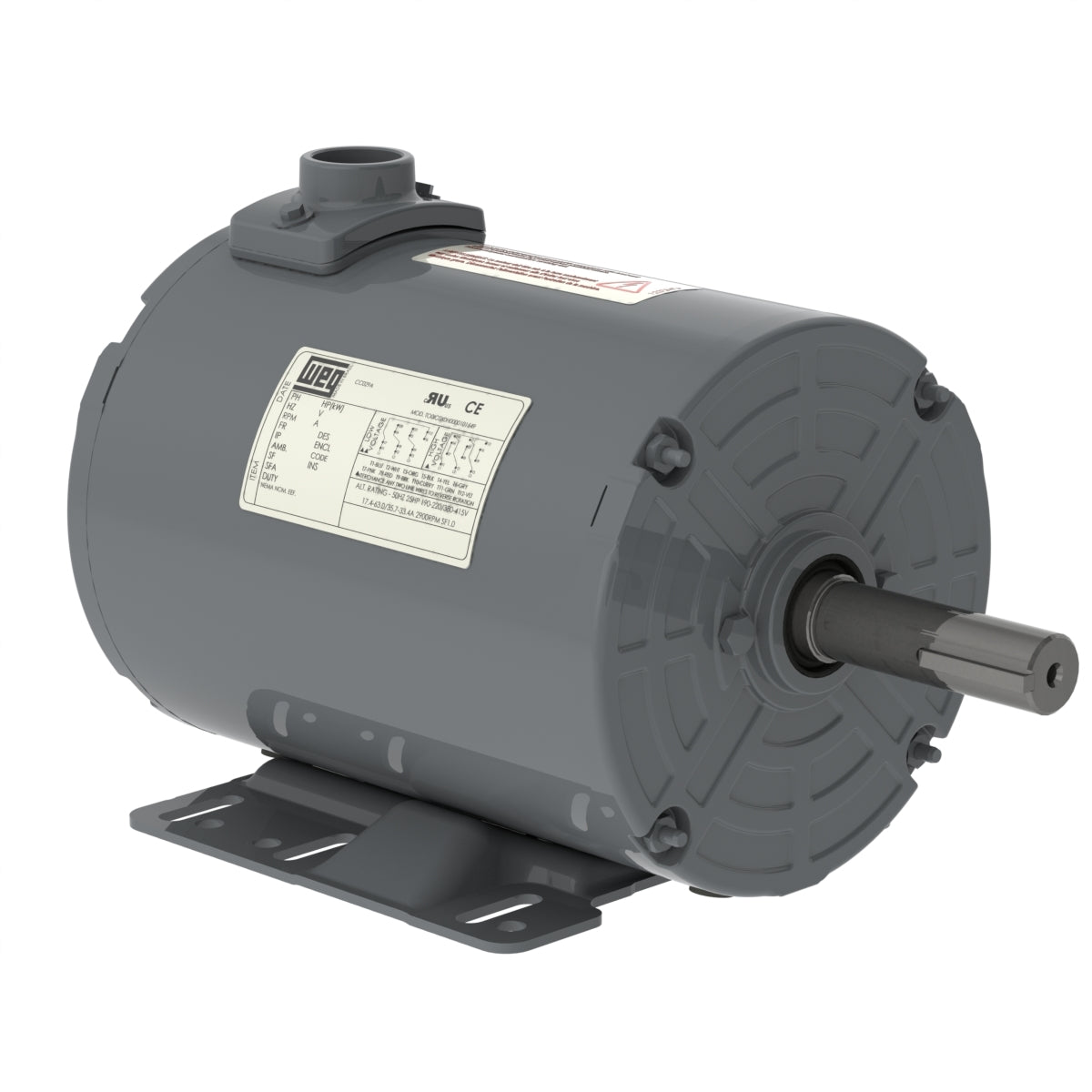

Weg Electric 00456AP3EGD182Z-S, 3 Hp, 3600 Rpm, 182/4TZ Frame, 208-230/460 Vac, TEAO, 3 PH, Foot-mounted, Rolled Steel Grain Dryer Standard Efficiency.

00456AP3EGD182Z-S, 3 Hp, 3600 Rpm, 182/4TZ Frame, 208-230/460 Vac, TEAO, 3 PH, Foot-mounted, Rolled Steel Grain Dryer Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 3.0-4.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-3
Terminal box¹ Top
Enclosure IC410 - TEAO

Frame 182/4TZ
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3540 rpm
Slip 1.67 %
Rated voltage 208-230/460 V
Rated current 9.45-8.54/4.27 A
L. R. Amperes 104-93.9/47.0 A
LRC 11.0x(Code N)
No load current 0.000-5.70/2.85 A
Rated torque 4.45 ft.lb
Locked rotor torque 380 %
Breakdown torque 550 %
Locked rotor time 18s (cold) 10s (hot)
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-3
Rotation¹ CCW
