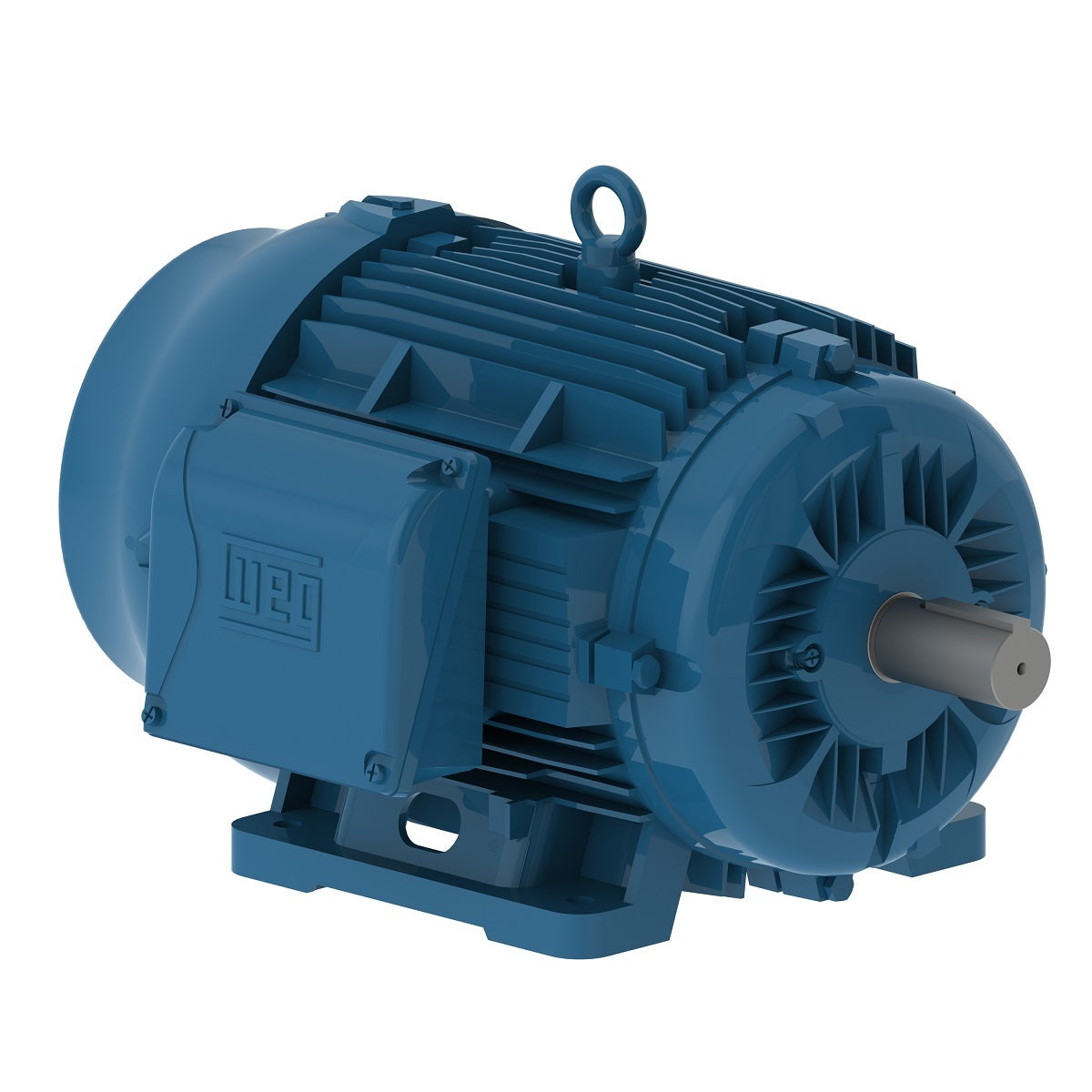

Weg Electric 00509ET3E254T-W22, 5 Hp, 900 Rpm, 254/6T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

00509ET3E254T-W22, 5 Hp, 900 Rpm, 254/6T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254/6T
Output 5 HP (3.7 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 882 rpm
Slip 2.00 %
Rated voltage 230/460 V
Rated current 15.2/7.58 A
L. R. Amperes 80.3/40.2 A
LRC 5.3x(Code H)
No load current 9.00/4.50 A
Rated torque 29.8 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 79s (cold) 44s (hot)
Moment of inertia (J) 3.41 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
