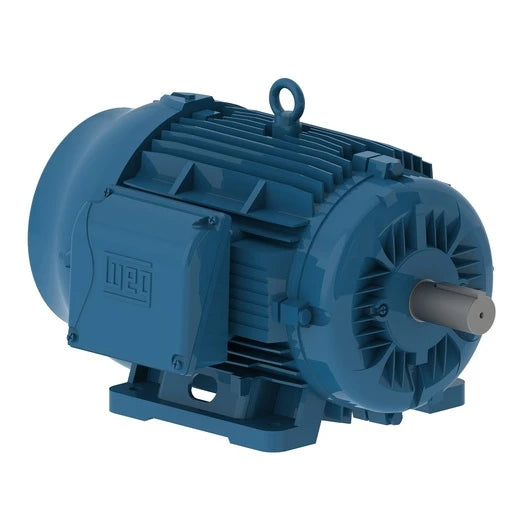

Weg Electric 00509ST3HIE254T-W22, 5 Hp, 900 Rpm, 254/6T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 13556811

Weg Electric 00509ST3HIE254T-W22, 5 Hp, 900 Rpm, 254/6T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 13556811

$3,776.27
$3,776.27
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00509ST3HIE254T-W22, 5 Hp, 900 Rpm, 254/6T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 13556811

SPECIFICATIONS

Manufacturer Part Number 00509ST3HIE254T-W22
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 5HP 8P 254/6T WFF2
Type Severe Duty
Horsepower 5 hp
Kilowatts 3.7 kW
Speed 900 RPM
Number of Poles 8
Phase 3
Frequency 60 Hz
NEMA Frame 254/6T
AC Voltage 575 VAC
Enclosure Totally Enclosed Fan Cooled
Mounting Foot Mount
Current Rating 6.24 A
Service Factor 1.15
Inverter Duty No
Motor Type Foot Mount
Composition Cast Iron
Shaft Diameter 1.63 "
Overload Protection None
Length 25.04 "
Approvals cCSAus, cULus
Net Weight 281.483 lbs
Gross Weight 281.483 lbs
