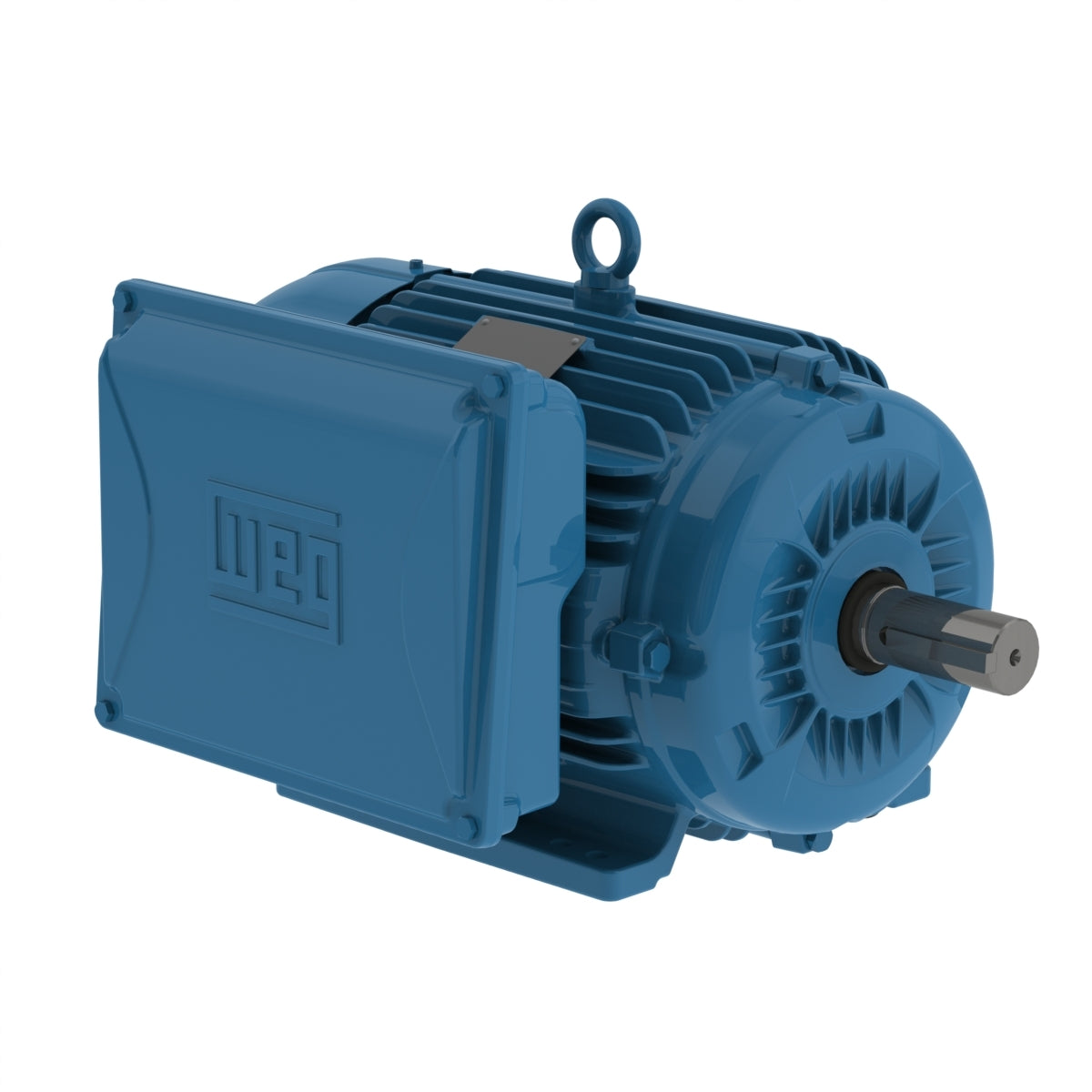

Weg Electric 00512ES1E215T-W22, 5 Hp, 1200 Rpm, 213/5T FR, 208-230/460 Vac, TEFC, 1 PH, Foot-mounted.

00512ES1E215T-W22, 5 Hp, 1200 Rpm, 213/5T FR, 208-230/460 Vac, TEFC, 1 PH, Foot-mounted.

Engineering Data

High starting torque
Suitable for domestic and rural power supply conditions
Adaptable design suitable for a variety of applications and needs

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5T
Output 5 HP (3.7 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 208-230/460 V
Rated current 22.0-21.2/10.6 A
L. R. Amperes 185-178/89.0 A
LRC 8.4x(Code K)
No load current 6.47-7.50/3.75 A
Rated torque 22.3 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.98 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
