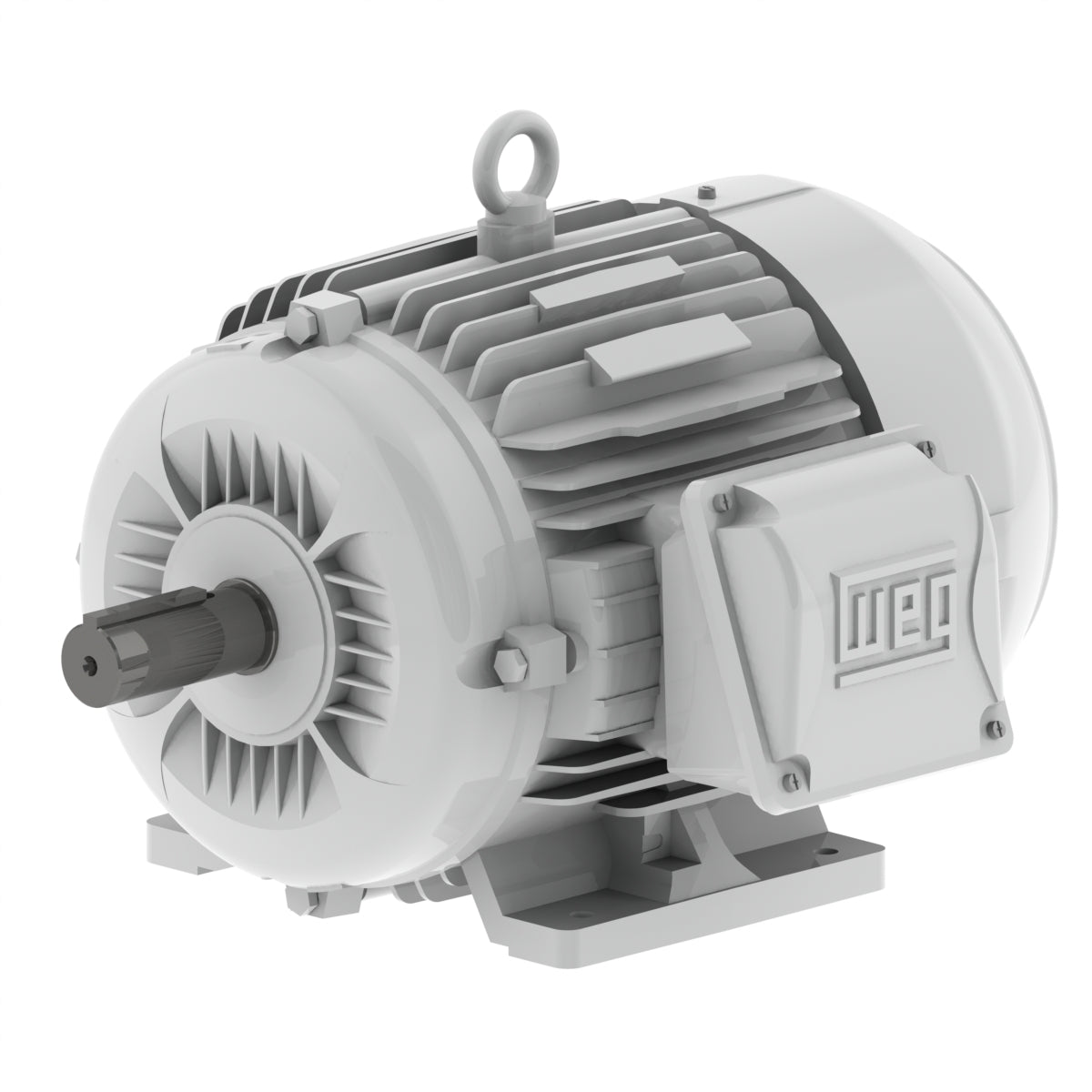

Weg Electric 00512ES3EOW215T-W22, 5 Hp, 1200 Rpm, 213/5T Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 Standard Efficiency.

00512ES3EOW215T-W22, 5 Hp, 1200 Rpm, 213/5T Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 Standard Efficiency.

Engineering Data

These special motors have the high slip and high torque that oil well beam pumping units demand. W22 Design D motors are requested on specifications for most major oil companies around the world as a result of their long lasting performance, low purchase and maintenance cost.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 213/5T
Output 5 HP (3.7 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1060 rpm
Slip 11.67 %
Rated voltage 208-230/460 V
Rated current 17.1-15.5/7.73 A
L. R. Amperes 106-95.9/47.9 A
LRC 6.2x(Code J)
No load current 9.24-8.36/4.18 A
Rated torque 24.8 ft.lb
Locked rotor torque 380 %
Breakdown torque 0 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 1.16 sq.ft.lb
Design D
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
