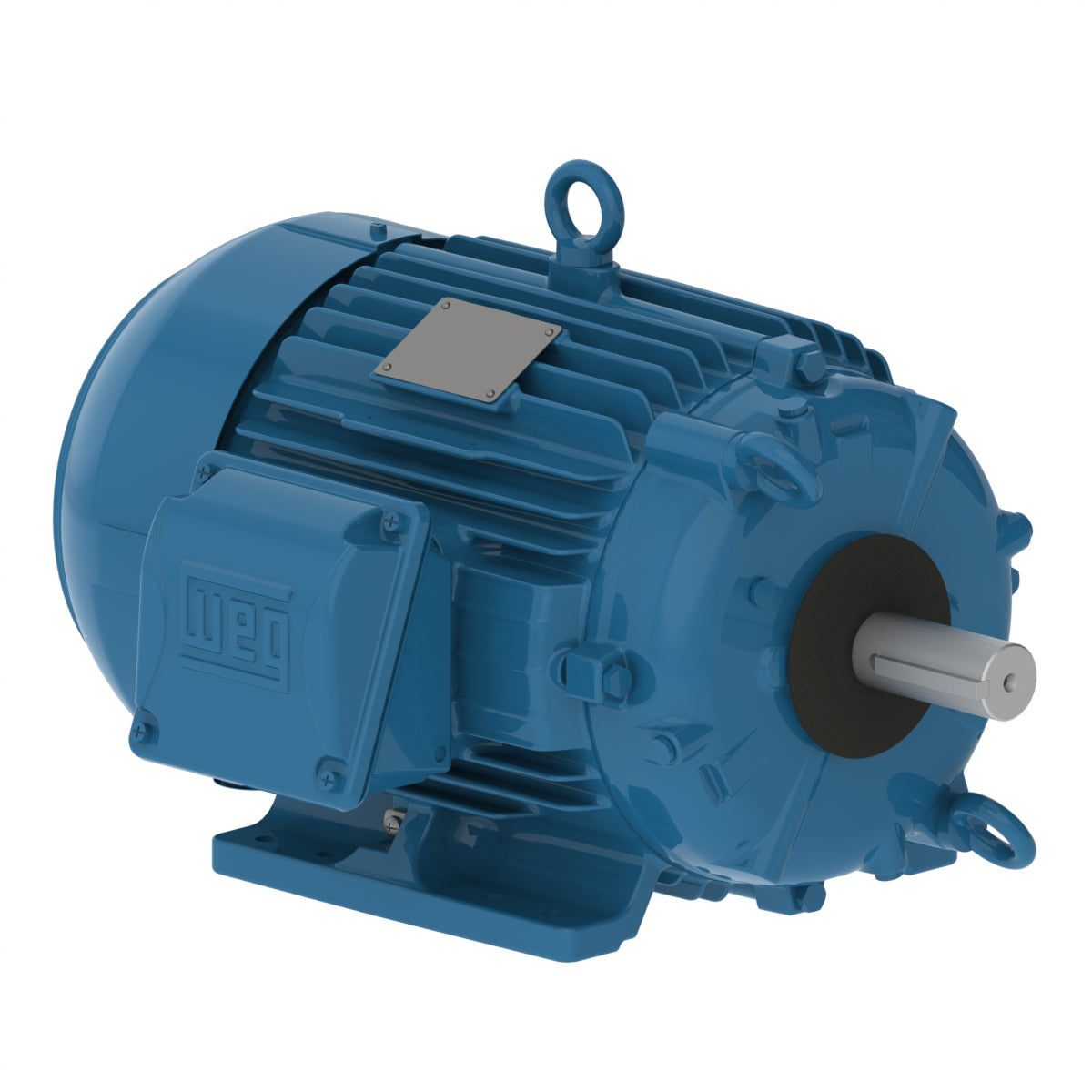

Weg Electric 00512ET3ECT215TF1-W2, 5 Hp, 1200 Rpm, 213/5T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower Premium Efficiency.

00512ET3ECT215TF1-W2, 5 Hp, 1200 Rpm, 213/5T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower Premium Efficiency.

Engineering Data

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5T
Output 5 HP (3.7 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 13.7/6.83 A
L. R. Amperes 92.9/46.4 A
LRC 6.8x(Code J)
No load current 6.90/3.45 A
Rated torque 22.4 ft.lb
Locked rotor torque 170 %
Breakdown torque 260 %
Locked rotor time 102s (cold) 57s (hot)
Moment of inertia (J) 1.47 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
