Industrial Motors

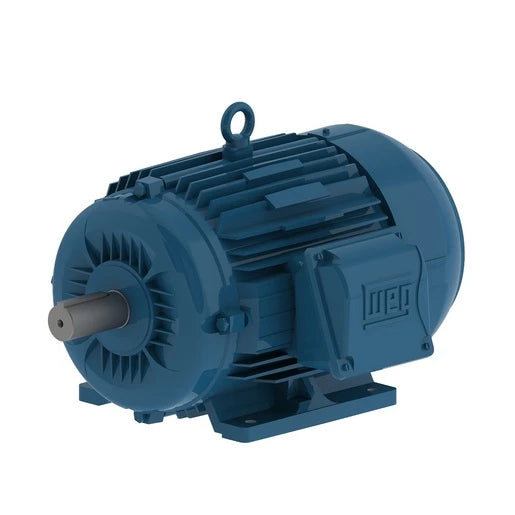

Weg Electric, 00512ET3Y132M/L-W22, 7.5 HP, 132M/L FR, 3Ph, 460//380-415 V, 60 Hz, 1200 RPM, TEFC, W22 Tru-Metric, 11802366

Weg Electric, 00512ET3Y132M/L-W22, 7.5 HP, 132M/L FR, 3Ph, 460//380-415 V, 60 Hz, 1200 RPM, TEFC, W22 Tru-Metric, 11802366

$1,566.40
$1,566.40
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric, 00512ET3Y132M/L-W22, 7.5 HP, 132M/L FR, 3Ph, 460//380-415 V, 60 Hz, 1200 RPM, TEFC, W22 Tru-Metric, 11802366

SPECIFICATIONS

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 7.5 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC
