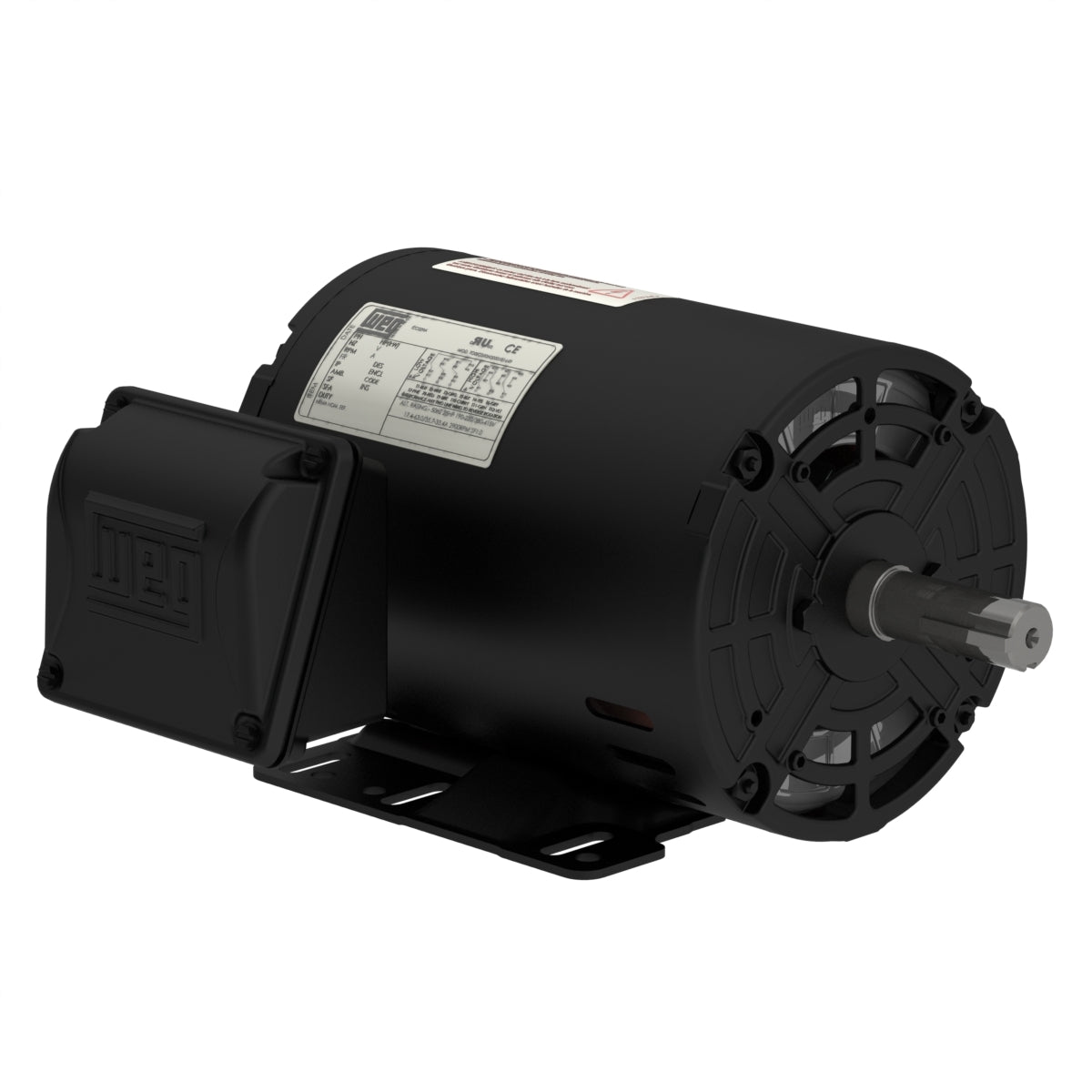

Weg Electric 00512OT3E215T-SG, 5 Hp, 1200 Rpm, 213/5T Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.

00512OT3E215T-SG, 5 Hp, 1200 Rpm, 213/5T Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 6
Synchronous speed 1200 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 213/5T
Output 5 HP (3.7 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 13.5/6.74 A
L. R. Amperes 79.5/39.8 A
LRC 5.9x(Code H)
No load current 7.10/3.55 A
Rated torque 22.3 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 52s (cold) 29s (hot)
Moment of inertia (J) 1.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
