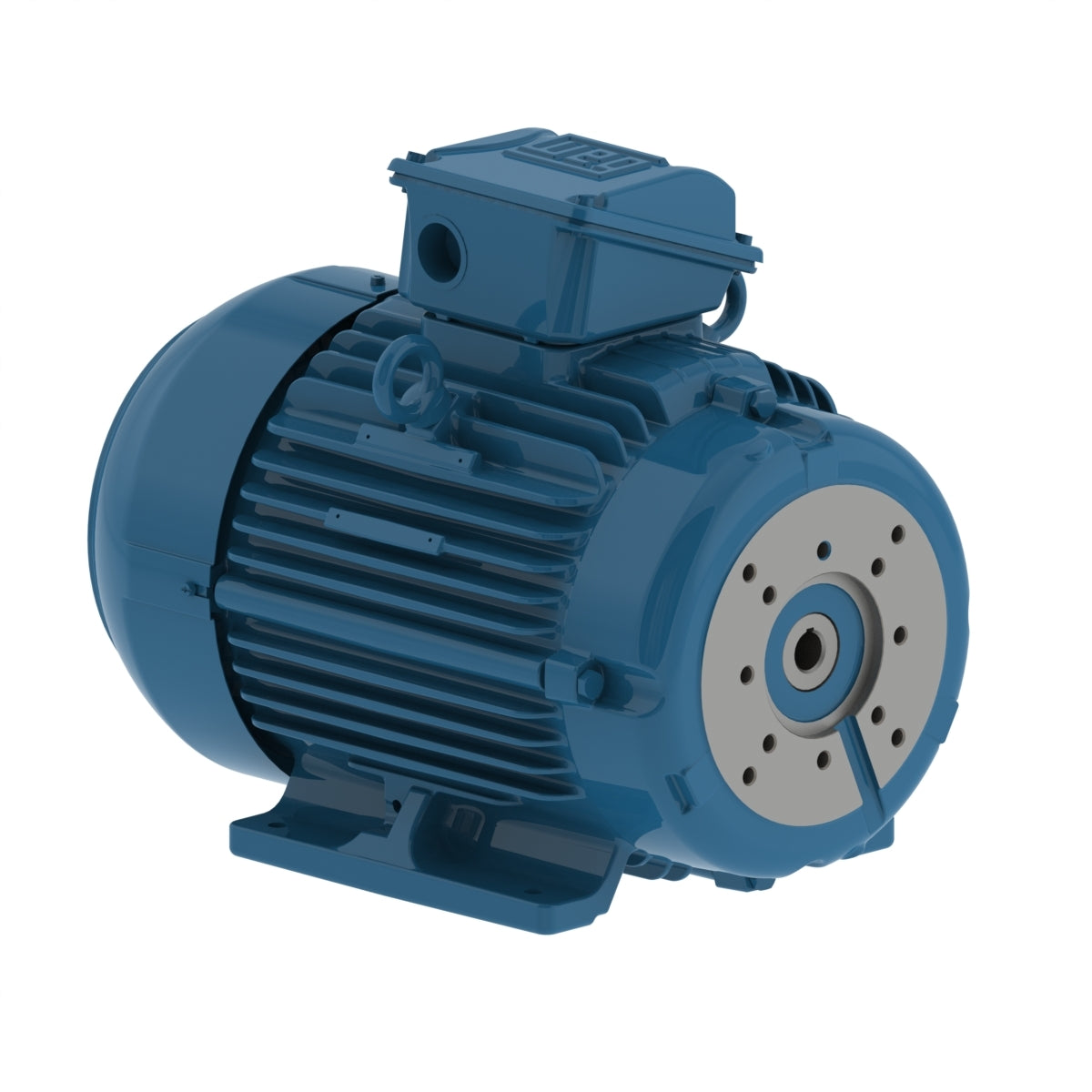

Weg Electric 00518EP3EHP184TYZ7F3, 5 Hp, 1800 Rpm, 184TZY Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 High Efficiency.

00518EP3EHP184TYZ7F3, 5 Hp, 1800 Rpm, 184TZY Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange Special
Mounting F-3
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 184TYZ
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 208-230/460 V
Rated current 16.3-14.7/7.37 A
L. R. Amperes 148-134/67.1 A
LRC 9.1x(Code M)
No load current 10.0-9.04/4.52 A
Rated torque 14.9 ft.lb
Locked rotor torque 300 %
Breakdown torque 420 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.3702 sq.ft.lb
Design A
Insulation Class F
Temperature rise 80 K
Duty Cycle S3
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
