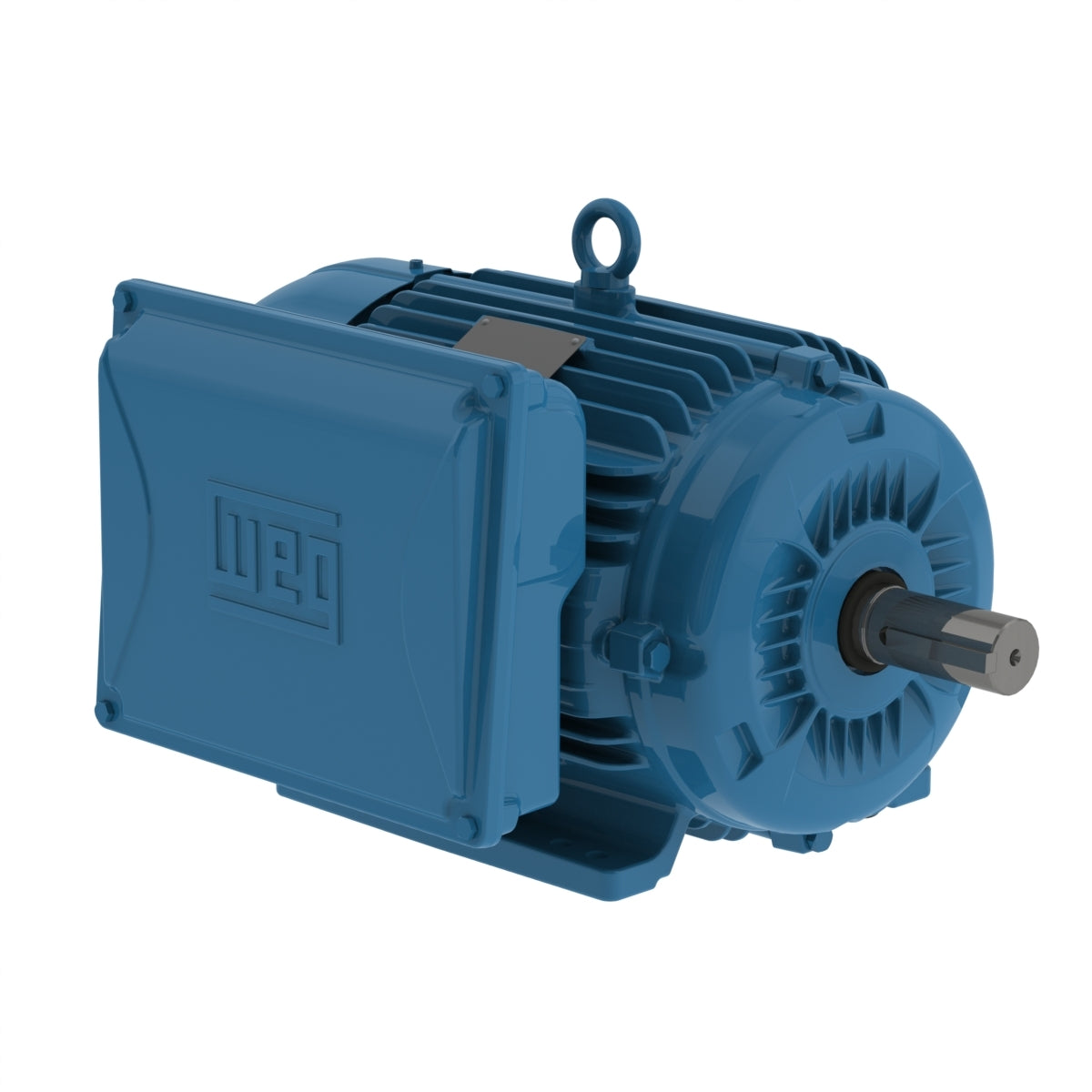

Weg Electric 00518ES1B184JM-W22, 5 Hp, 1800 Rpm, 182/4JM FR, 115/208-230 Vac, TEFC, 3 PH, Foot-mounted, JM Pump.

00518ES1B184JM-W22, 5 Hp, 1800 Rpm, 182/4JM FR, 115/208-230 Vac, TEFC, 3 PH, Foot-mounted, JM Pump.

Engineering Data

High starting torque.
For applications on commercial and industrial pumps (JM/JP - mechanical seal/gasket).
Suitable for domestic and rural power supply conditions.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4JM
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1735 rpm
Slip 3.61 %
Rated voltage 115/230 V
Rated current 44.8/22.4 A
L. R. Amperes 349/175 A
LRC 7.8x(Code K)
No load current 19.6/9.80 A
Rated torque 15.1 ft.lb
Locked rotor torque 280 %
Breakdown torque 245 %
Locked rotor time 14s (cold) 8s (hot)
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
