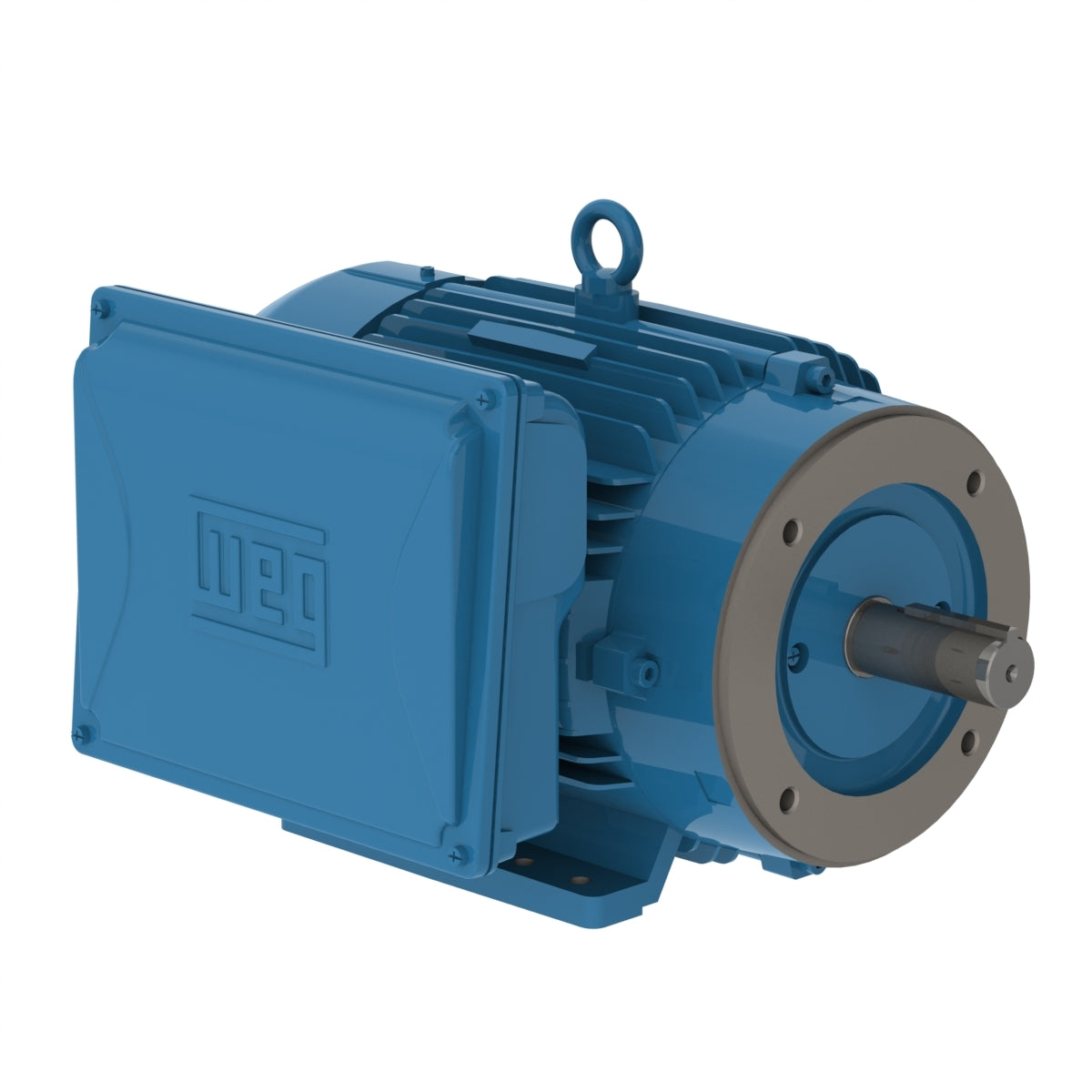

Weg Electric 00518ES1C184TC-W22, 5 Hp, 182/4TC Frame, 1800 RPM, 208-230 Vac, TEFC, 1 PH, Foot-mounted, W22.

00518ES1C184TC-W22, 5 Hp, 182/4TC Frame, 1800 RPM, 208-230 Vac, TEFC, 1 PH, Foot-mounted, W22.

Engineering Data

High starting torque
Suitable for domestic and rural power supply conditions
Adaptable design suitable for a variety of applications and needs

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4TC
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1730 rpm
Slip 3.89 %
Rated voltage 208-230 V
Rated current 23.0-21.4 A
L. R. Amperes 150-139 A
LRC 6.5x(Code H)
No load current 6.90-8.00 A
Rated torque 15.2 ft.lb
Locked rotor torque 360 %
Breakdown torque 235 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.4357 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
