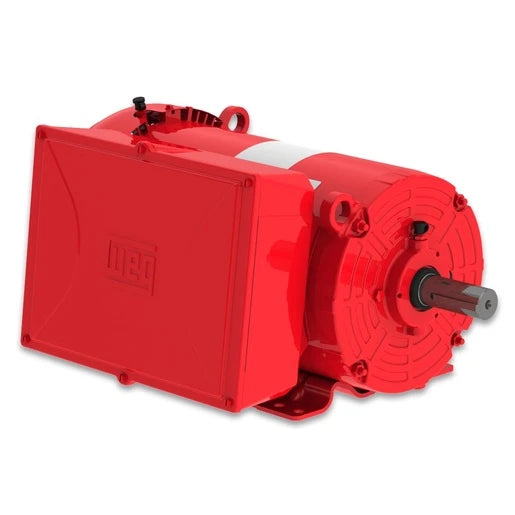

Weg Electric 00518ES1DFD184T-S, 5 HP, 182/4T FR, 1Ph, 230 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, ROLLED STEEL, 14058209

Weg Electric 00518ES1DFD184T-S, 5 HP, 182/4T FR, 1Ph, 230 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, ROLLED STEEL, 14058209

$955.86
$955.86
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00518ES1DFD184T-S, 5 HP, 182/4T FR, 1Ph, 230 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, ROLLED STEEL, 14058209

SPECIFICATIONS

Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 230 V
Rated current 19.9 A
L. R. Amperes 163 A
LRC 8.2x(Code J)
No load current 5.00 A
Rated torque 14.9 ft.lb
Locked rotor torque 320 %
Breakdown torque 300 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 0.4637 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Starting Method Direct On Line
Duty Cycle Cont.(S1)
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 112 lb
