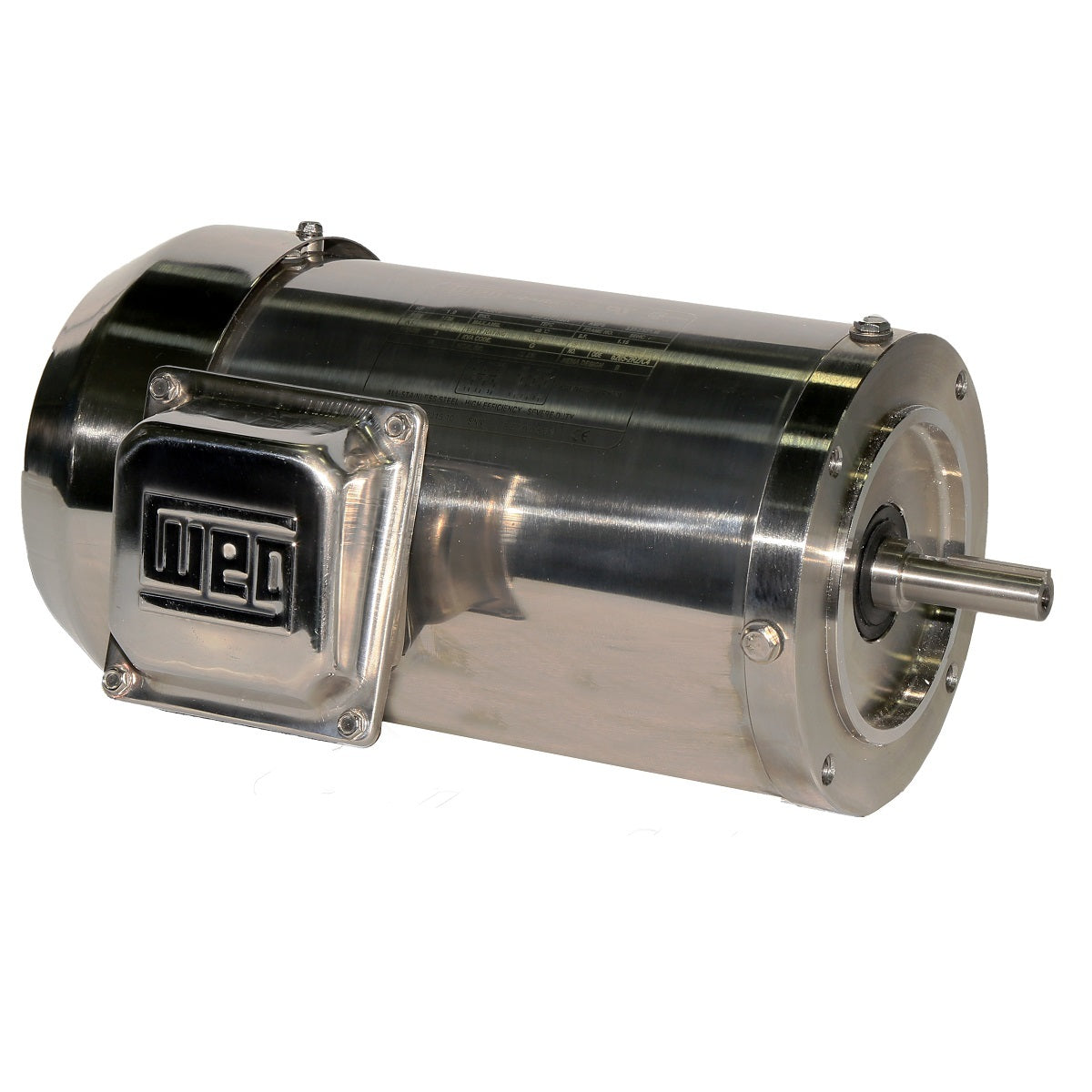

Weg Electric 00518ET3ESS184TCFL, 5 Hp, 1800 Rpm, 184TC FR, 230/460 Vac, TEFC, Footless, Shark NEMA Premium Efficiency.

00518ET3ESS184TCFL, 5 Hp, 1800 Rpm, 184TC FR, 230/460 Vac, TEFC, Footless, Shark NEMA Premium Efficiency.

Engineering Data

For use in food processing, pharmaceutical and other environments requiring extreme cleanliness and frequent washdowns.

Product features
Standard NEMA MG-1
Frame 184TC
Frequency 60 Hz
Number of poles 4
Degree of Protection IP56
Synchronous speed 1800 rpm
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure TEFC

Standard NEMA MG-1
Degree of Protection IP56
Mounting F-1
Output rating 5 HP
Enclosure TEFC
Frequency 60 Hz
Flange C
Frame Material Stainless steel
Mounting Footless
Efficiency NEMA Premium Efficiency
Motor Application Shark
Terminal box¹ Left position
Frame 184TC
Voltage 230/460 V
Synchronous speed 1800 rpm
Number of Poles 04
