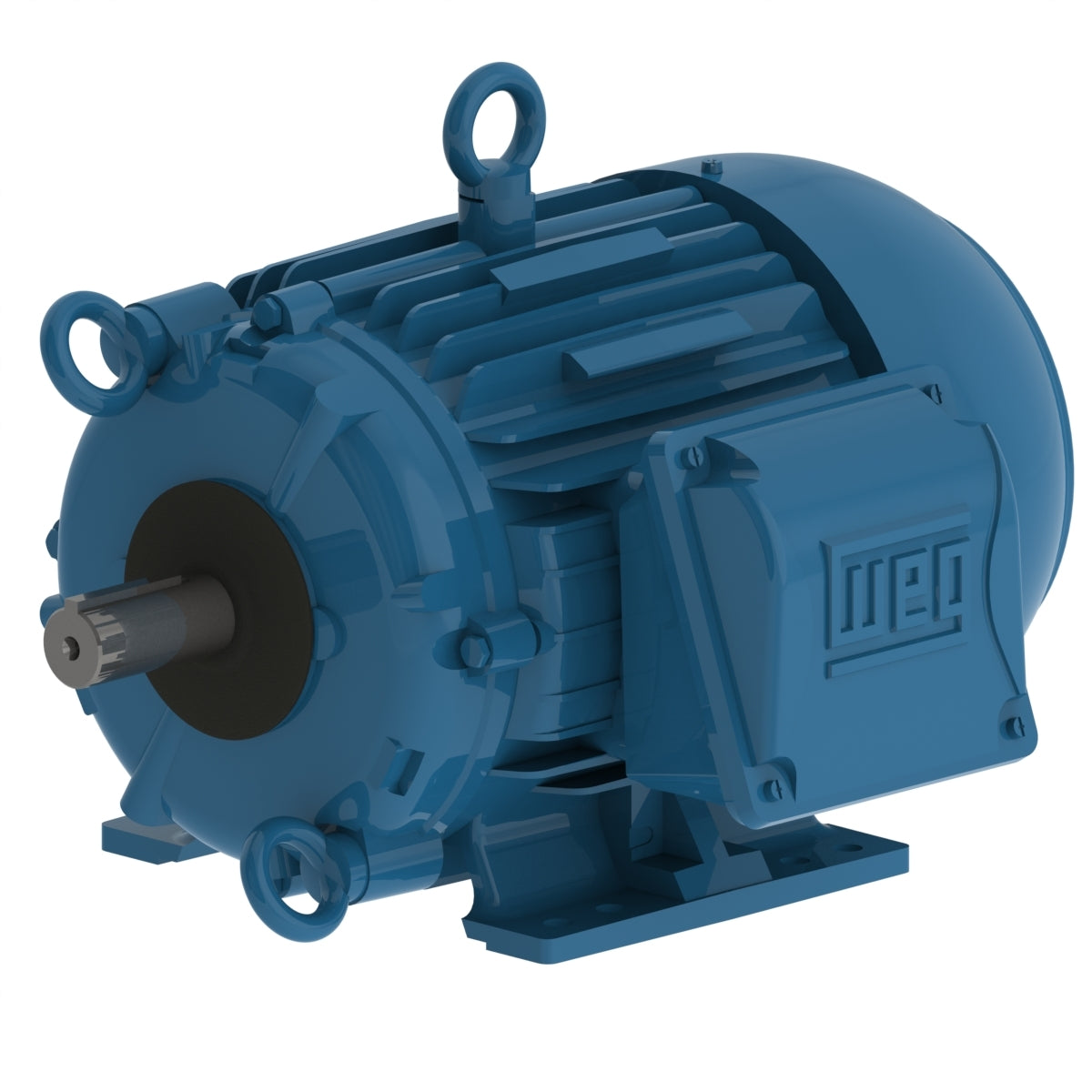

Weg Electric 00518ET3HCT184T-W22, 5 Hp, 1800 Rpm, 182/4T FR, 575 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower NEMA Premium Efficiency.

00518ET3HCT184T-W22, 5 Hp, 1800 Rpm, 182/4T FR, 575 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 575 V
Rated current 5.16 A
L. R. Amperes 38.7 A
LRC 7.5x(Code J)
No load current 2.56 A
Rated torque 15.0 ft.lb
Locked rotor torque 229 %
Breakdown torque 320 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
