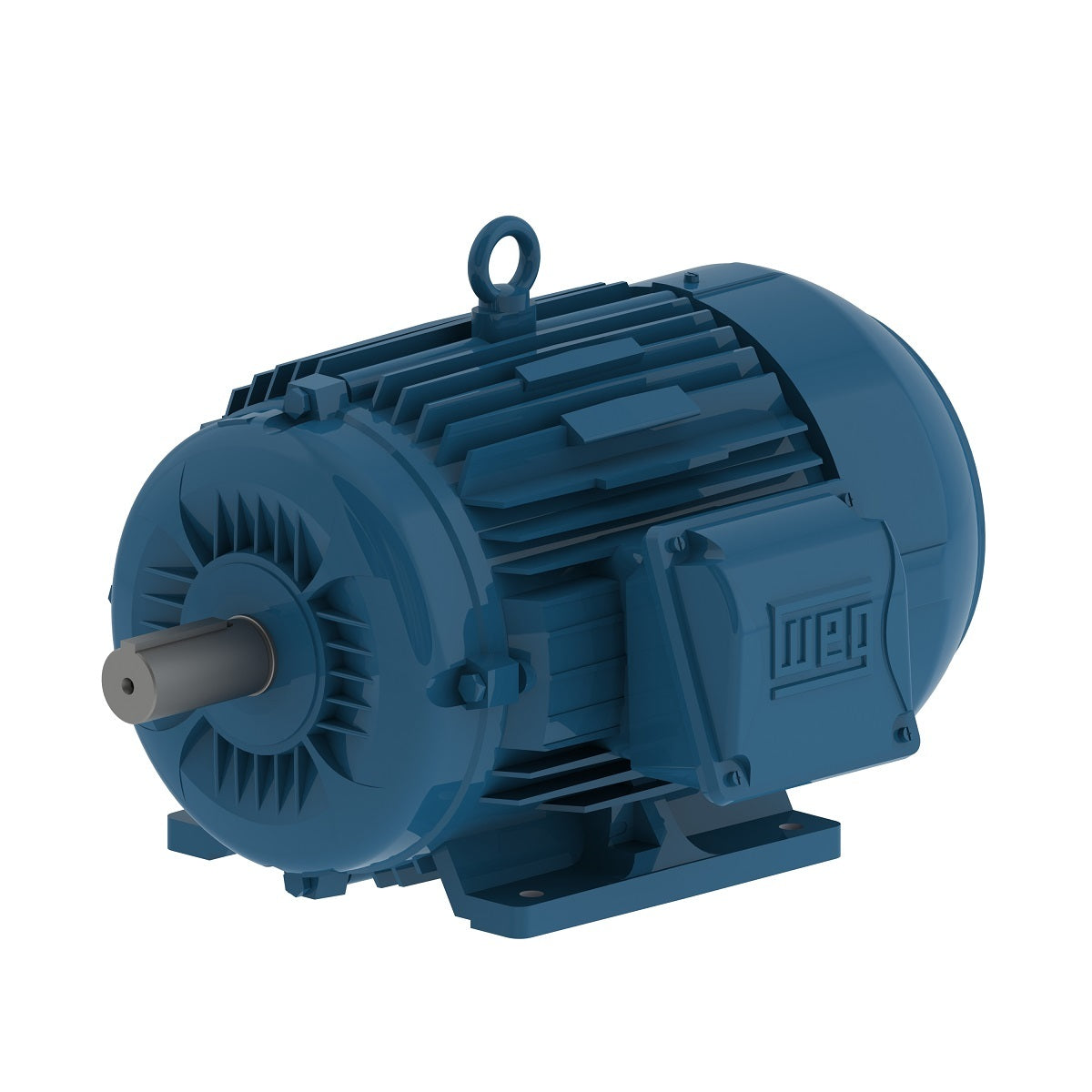

Weg Electric 00518ET3Y132S-W22, 7 1/2 Hp, 1800 Rpm, 132S Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric.

00518ET3Y132S-W22, 7 1/2 Hp, 1800 Rpm, 132S Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 7.5 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 132S
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 460 V
Rated current 9.07 A
L. R. Amperes 94.3 A
LRC 10.4
No load current 4.43 A
Rated torque 22.2 ft.lb
Locked rotor torque 260 %
Breakdown torque 430 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 1.25 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
