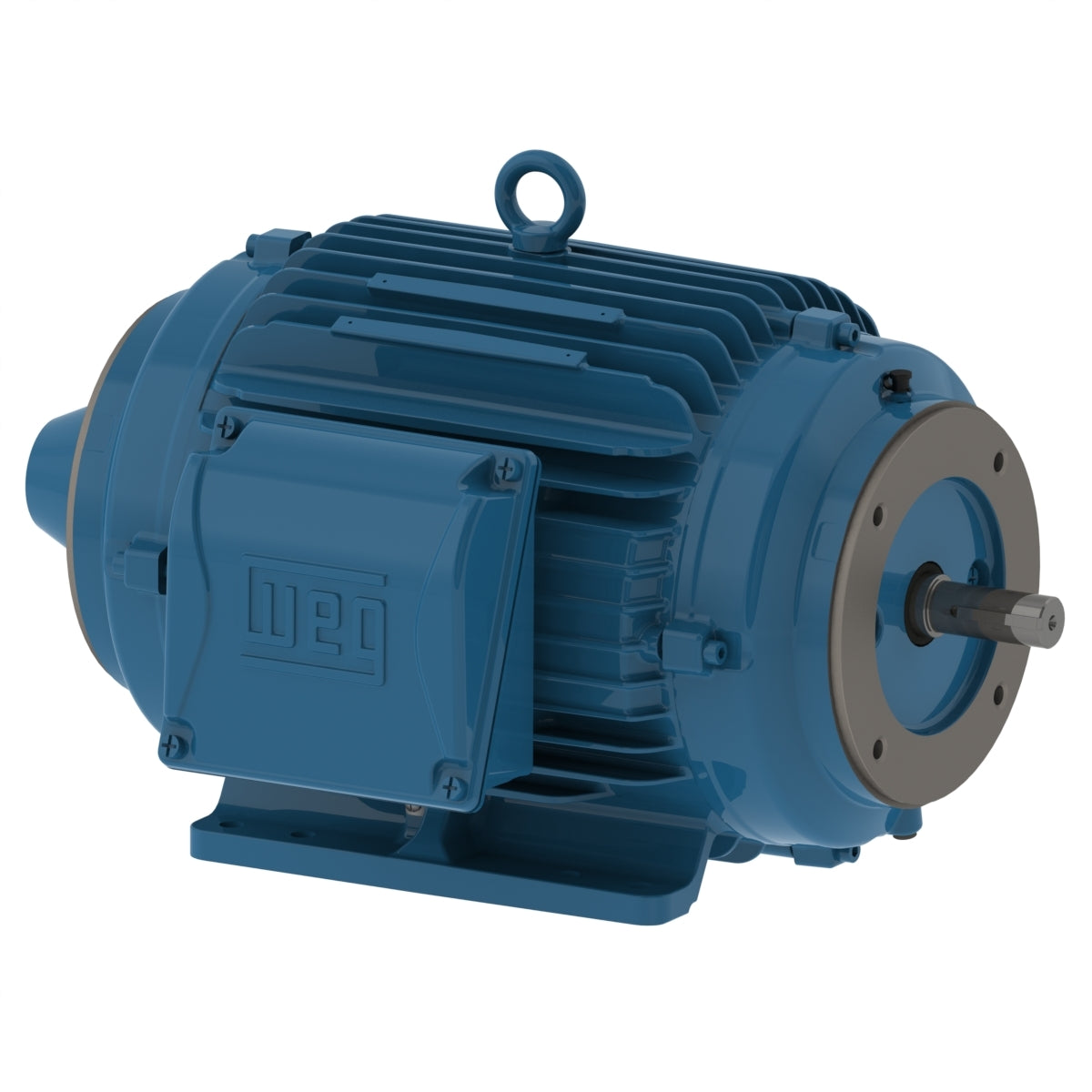

Weg Electric 00518NT3FVD184TC-W22, 5 Hp, 1800 Rpm, 182/4TCZ FR, 230/460 Vac, TENV, 3 PH, Foot-mounted, NEMA Premium Efficiency.

00518NT3FVD184TC-W22, 5 Hp, 1800 Rpm, 182/4TCZ FR, 230/460 Vac, TENV, 3 PH, Foot-mounted, NEMA Premium Efficiency.

Engineering Data

Motor designed specifically for Inverter Operation, allowing its use in applications where 1000:1 constant torque turndown ratio is required.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TENV

Frame 182/4TCZ
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 14.2/7.11 A
L. R. Amperes 135/67.5 A
LRC 9.5x(Code M)
No load current 8.60/4.30 A
Rated torque 14.9 ft.lb
Locked rotor torque 290 %
Breakdown torque 450 %
Locked rotor time 55s (cold) 31s (hot)
Design A
Insulation Class H
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method VFD
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TENV
Mounting F-1
Rotation¹ Both (CW and CCW)
