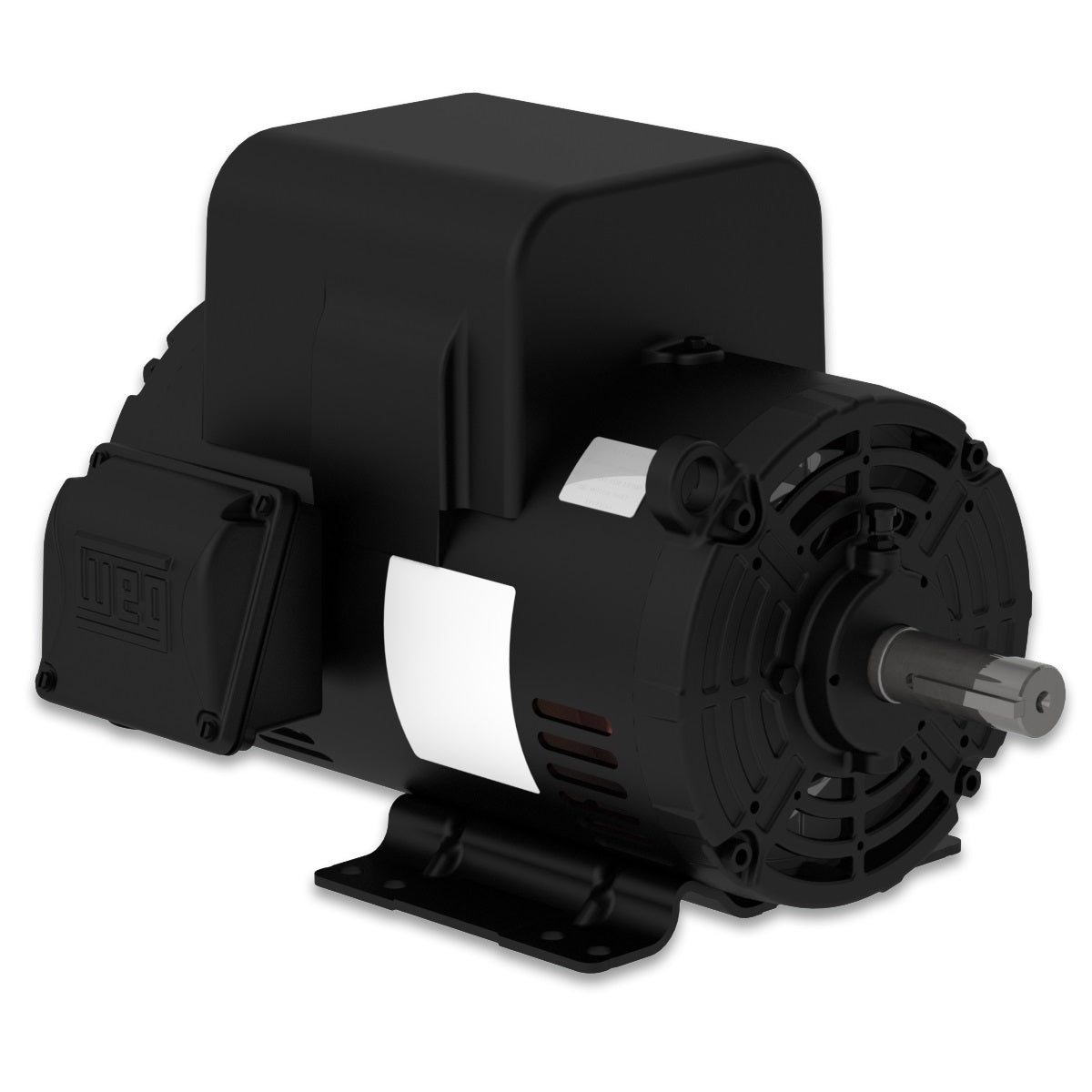

Weg Electric 00518OS1C184T-S, 5 Hp, 1800 Rpm, 182/4T Frame, 208/230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

00518OS1C184T-S, 5 Hp, 1800 Rpm, 182/4T Frame, 208/230 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 208-230 V
Rated current 21.5-19.7 A
L. R. Amperes 146-134 A
LRC 6.8x(Code G)
No load current 4.31-5.00 A
Rated torque 15.0 ft.lb
Locked rotor torque 250 %
Breakdown torque 235 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.4172 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
