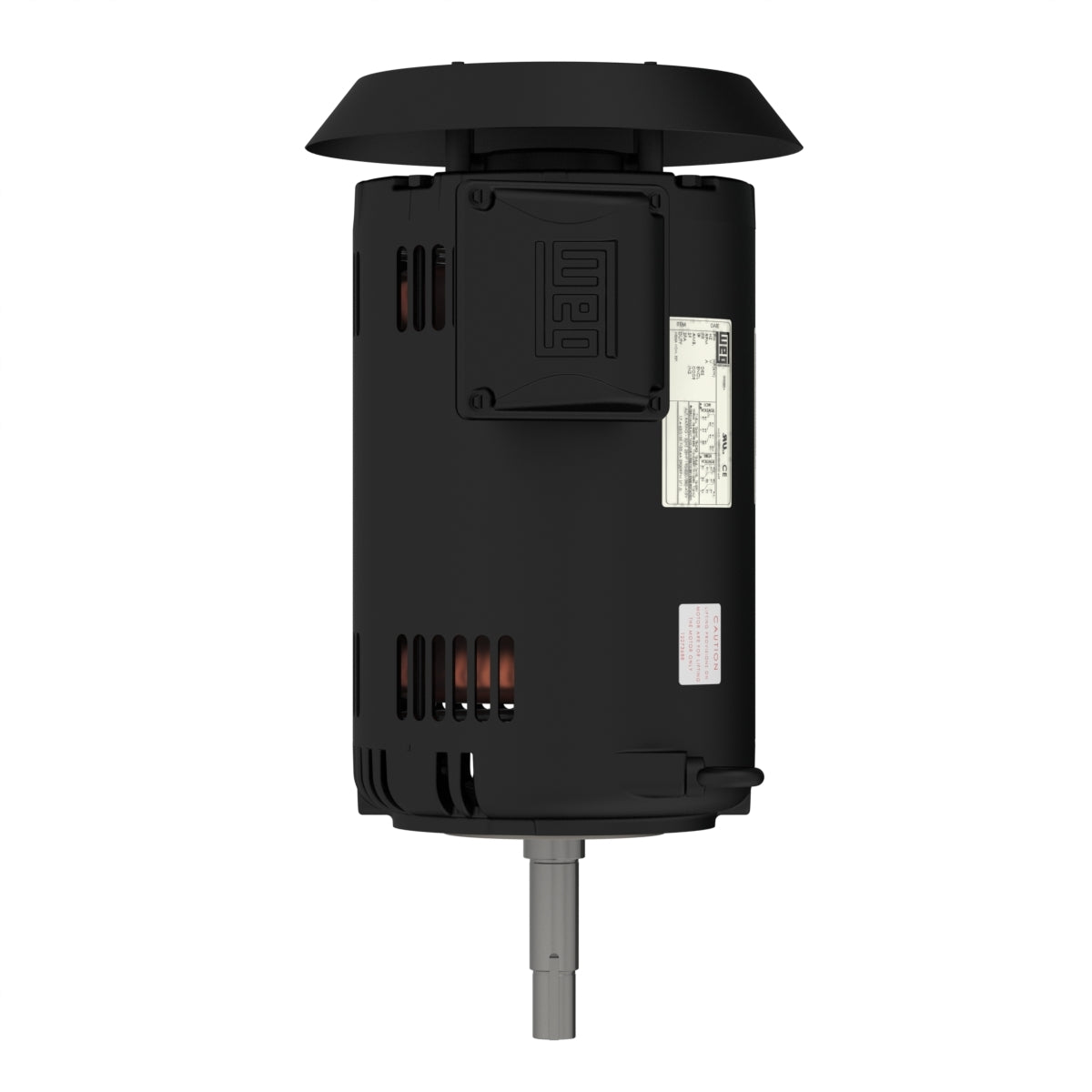

Weg Electric 00518OT3E184JMV-S, 5 Hp, 182/4JM Frame, 1800 RPM, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump NEMA Premium Efficiency.

00518OT3E184JMV-S, 5 Hp, 182/4JM Frame, 1800 RPM, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump NEMA Premium Efficiency.

Engineering Data

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 5 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 182/4JM
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 12.7/6.33 A
L. R. Amperes 91.2/45.6 A
LRC 7.2x(Code J)
No load current 6.29/3.15 A
Rated torque 14.9 ft.lb
Locked rotor torque 200 %
Breakdown torque 310 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
